McFarlane Cone Union 1/8 Modified - AN800C2-MOD

$23.50/Each
Quantity
Add to Wishlist
Part# 05-16179
MFR Model# AN800C2-MOD

Overview

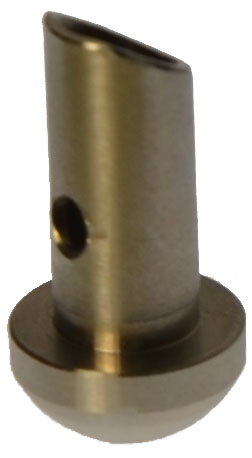

Fuel Injection/Hydraulic/Oxygen Line Union Cone

Improved design!

These braze-on 316 stainless fittings are an improvement over AN800C2 fittings commonly used on 1/8" stainless steel fuel injection, hydraulic and oxygen lines.
Improvements include:
  • Witness hole to assure complete braze penetration
  • Closer tolerance ID (0.131-0.133") to assure compatibility with close tolerance MIL-T-8504/ASTM A4632 stainless steel tubing. The precision ID provides ideal clearance for proper braze penetration.
Note: Although similar, these parts are not manufactured/certified to the AN800 spec. Fittings certified to AN800 are available upon request.
