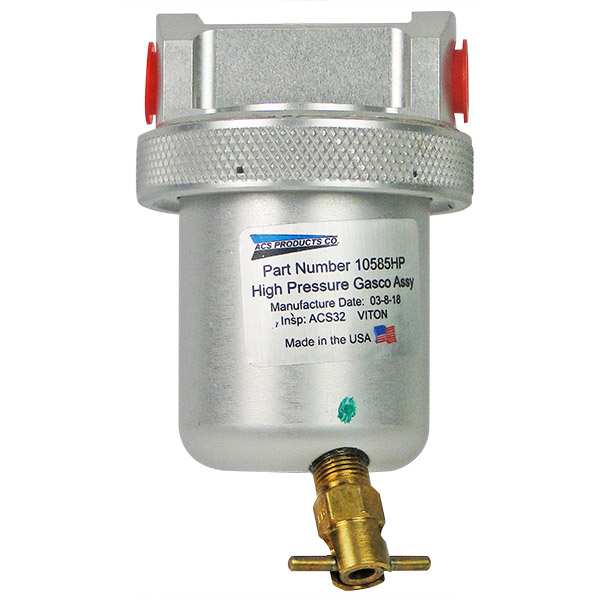

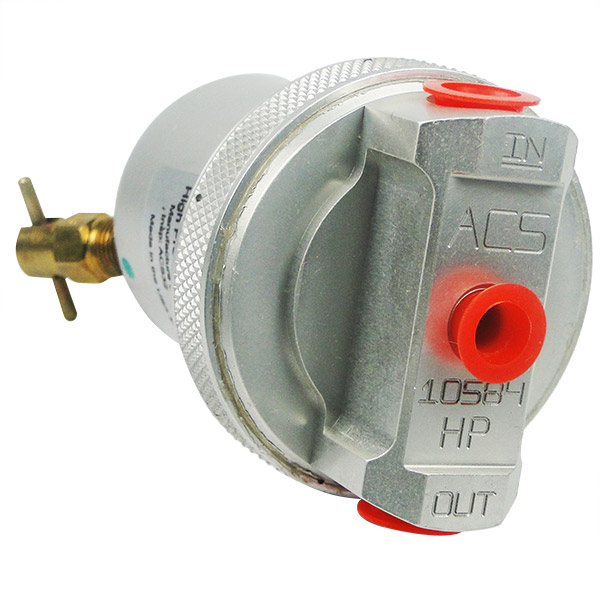

New ACS high pressure gascolator. Lighter weight and simpler design than the ACS "classic" gascolator. Bailwire and attaching hardware have been eliminated. Threaded collar secures bowl to top. Tested to 50lbs. Bowl is cadmium plated and top and collar are anodized for corrosion protection. Top has 1/4" pipe ports for 3/8" fuel line and one 1/8" pipe port for primer fitting.
Made in USA
very well made and affordable
Nice compact gascolator, good quality of construction. The only reason I did not give it 5 stars is it would be better if it had a way to safety wire the bowl locking ring.
Very high quality fit and finish. I would have given 5 stars but the design provides no positive provisions for mounting it. Other than suspending it from the fittings (generally a poor way to go) theres no threaded bosses or tabs to attach a good mount to.
Per the manufacturer, the high pressure unit (part # 05-04248) does not use the same bracket as the regular unit. It uses the Gascolator Mounting Flange found in the "Accessories" tab (part # 05-00907).
Yes, it works in low and high pressure applications.
No, this gascolator is not FAA Approved. It is intended for use in experimental aircraft only.
Per the supplier: Top has 1/4" pipe ports for 3/8" fuel line and one 1/8" pipe port for primer fitting.It is tested to 50 PSI, but we do not have a fuel flow rate.
Yes, they both share the same dimensions.
Yes, this will work as this will have 1/4" NPT ports and AN840-6D has a 1/4" NPT thread.
Approx 0.36 lbs.
There is a screen at the top of the bowl.
It is tested for 50lbs but we do not have flow rate specs for this unit.
This comes with the 120 micron screen.
