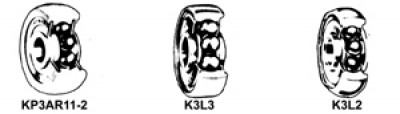

Single Row Ball Double Seats

Select Part:
KP4R16KP4R16-2
Quantity
Add to Wishlist

Overview



PN Bore Outside
Diameter
Width
Inner Ring
Width
Outer Ring
Shoulder
Diameter
Inner Ring
Corner Chamfer
Inner Ring Bore
Corner
Outer Ring
O.D.
Radius
Outside
Diameter
Contour
Balls Max Load Wgt
K3L3 .1900 .635 .245 .203 .280 .005 .020 .550 10-1/8 200 .01
KP4R16 .2500 .901 .484 .335 .390 .005 .005 1.000 11-5/32 400 .04
KP4R16-2 .2500 1.000 .390 .335 .390 .005 .015 .990 11-5/32 500 .06
