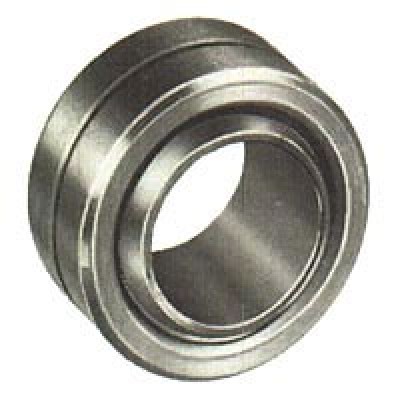

- Photo may represent series and not specific product
- SHARE
| Aurora PN | Heim Equivalent | Price | Buy |
|---|---|---|---|
| COM-3 | LSS-3 | $24.60 | |
| COM-4KH | LHA-4 | $37.75 | |
| COM-5 | LSS-5 | $30.50 | |
| COM-5KH | LHA-5 | $45.50 | |
| COM-6 | LSS-6 | $23.50 | |
| COM-6KH | LHA-6 | $39.50 | |
| COM-7KH | LHA-7 | $38.50 | |
| COM-8KH | LHA-8 | $39.50 | |
| COM-9 | LSS-9 | $18.50 | |
| COM-10KH | LHA-10 | $46.99 | |
| COM-12KH | LHA-12 | $50.50 | |
| COM-14 | LSS-14 | $35.50 | |
| COM-14KH | LHA-14 | $104.75 | |
| COM-16 | LSS-16 | $56.75 | |
| COM-16KH* | LHA-16 | $113.75 | |
| COM-16T | -- | $107.75 |
Overview
COM-KH Series Spherical Bearings, (Ptfe Liners Available)
|
Reference Chart
Aurora P/N | SEE DIAGRAM ABOVE Dimensions In Inches | |||||||
B +.0015 - .0005 | D +.0000 -. 0007 | H ± .005 | W ± .005 | O Flat Dia. Ref. | M Chamfer Ref. | Ball Dia. Ref. | a (DEG.) | |
COM-3 | .1900 | .5625 | .218 | .281 | .293 | .015 | 406 | 11 |
COM-3KH | .1900 | .5625 | .218 | .281 | .293 | .015 | .406 | 11 |
COM-4KH | .2500 | .6562 | .250 | .343 | .364 | .022 | .500 | 13.5 |
COM-5 | .3125 | .7500 | .281 | .375 | .419 | .032 | .562 | 12 |
COM-5KH | .3125 | .7500 | .281 | .375 | .419 | .032 | .562 | 12 |
COM-6 | .3750 | .8125 | .312 | .406 | .516 | .032 | .656 | 10 |
COM-6KH | .3750 | .8125 | .312 | .406 | .516 | .032 | .656 | 10 |
COM-7KH | .4375 | .9062 | .348 | .437 | .530 | .032 | .687 | 8 |
COM-8KH | .5000 | 1.0000 | .390 | .500 | .640 | .032 | .813 | 9.5 |
COM-9 | .5625 | 1.0937 | .437 | .562 | .710 | .032 | .906 | 9.5 |
COM-9KH | .5625 | 1.0937 | .437 | .562 | .710 | .032 | .906 | 9.5 |
COM-10KH | .6250 | 1.1875 | .500 | .625 | .780 | .032 | 1.000 | 8.5 |
COM-12KH | .7500 | 1.4375 | .593 | .750 | .920 | .044 | 1.187 | 9 |
COM-14 | .8750 | 1.5625 | .703 | .875 | .980 | .044 | 1.312 | 9.5 |
COM-14KH | .8750 | 1.5625 | .703 | .875 | .980 | .044 | 1.312 | 9.5 |
COM-16 | 1.0000 | 1.7500 | .797 | 1.000 | 1.118 | .044 | 1.500 | 10 |
COM-16KH* | 1.0000 | 1.7500 | .797 | 1.000 | 1.118 | .044 | 1.500 | 10 |
Reviews
This is a very nice bearing. I used it as a flap bearing on a Mooney M20F. WEar is caused, I think, because the little sticking-out part of the ball gets squeezed by washers, so the ball doesnt rotate. The same section of bearing repeatedly takes the exact same 30 degree wear area. Nice bearing though.
Verified Purchase
Aurora Bearing Com-3
Excllent product and service from Aircraft Spruce.
Verified Purchase
Aurora Bearing Com-3
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The race on the COM bearings are carbon steel, I.D. protective coated for corrosion resistance.
The race on the COM-KH bearings are alloy steel, heat treated, I.D. protective coated for corrosion resistance.
The COM-KH have a higher radial static limit load capacity.
