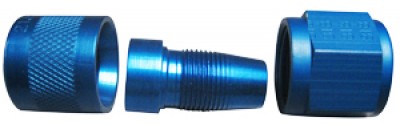

|Used with Aeroquip 306 Hose, Aeroquip 471 hose fittings consist of an AN818 nut, an externally threaded 37 nipple and an internally threaded hose socket. All components are anodized aluminum. Fittings conform to MS27404|
worked very well. I made an assembly tool that simulated a flare fitting so that I could screw in the center piece
AEROQUIP HOSE FITTING 471-4D
Love these for lower pressure applications. Easier to put together than the 303 hose with 491 fittings!
Worked as expected. Very clean and easy way to build Vacuum lines for the Instruments. Clamps are history to me know!
Excellent fittings that drive pretty easily and grab the hose well. The description says the collar portion is internally threaded. The ones I received were internally ringed, instead of the coarse thread you might expect. They held very well despite this and I actually prefer it, though some have told me that the threaded ones have less problem with the hose backing out during assembly.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, this hose fitting will thread on male 37* AN fittings.
Per the Aeroquip catalog, the inside diameter of the 471-6D is .294". This fitting is designed to be used with 306-6, which has a .375" inside diameter.
