KP SERIES BEARINGS AN200 MS27640

From $29.75 to $56.75
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

Description Part Number Price Buy
BEARINGS KP3L
KP3L
$56.75
Quantity
BEARINGS KP3
KP3
$35.85
Quantity
HEIM BEARING KP4
KP4
$39.90
Quantity
KP5 BEARING MS27640-5
KP5
$51.85
Quantity
BEARINGS KP6
KP6
$29.75
Quantity
BEARINGS KP8
KP8
$51.75
Quantity
Subtotal $0.00
Add to Wishlist

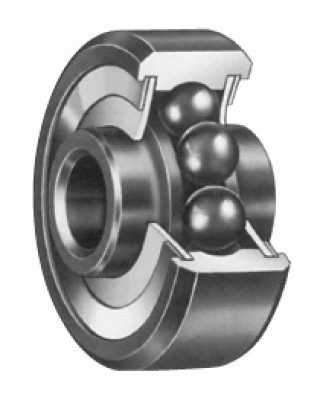

Overview

  • Single row, ball, heavy duty
  • PTFE seals and CRES sealcaps
  • Exposed surfaces except bore, caps, and seals are cadmium plated
  • Prelubricated for life

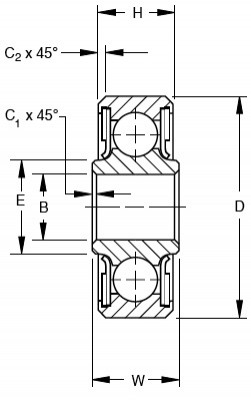

Specifications

PN Bore
B
Outside Inner
D
Width Outer
Ring
W
Width  Inner
H
Shoulder Width  Bore
Ring
Inner
Ring
OD
Outer
Ring Corner Chamfer
Balls Pure Moment Moment Constant Wgt
KP3L 0.19 0.625 0.245 0.203 0.285 0.005 0.01 10/5/1932 51.8 12.08 0.01
KP3 0.19 0.7774 0.297 0.27 0.331 0.005 0.022 12/5/1932 93.7 10.13 0.03
KP4 0.25 0.9014 0.484 0.335 0.39 0.005 0.032 11/1/2004 130 8.84 0.04
KP5 0.3125 1.25 0.558 0.375 0.469 0.015 0.032 9/5/2016 335 6.77 0.09
KP6 0.375 1.4375 0.62 0.469 0.591 0.015 0.032 10/11/1932 580 5.44 0.15
KP8 0.5 1.6875 0.62 0.5 0.768 0.015 0.044 10/11/1932 1060 4.46 0.21
