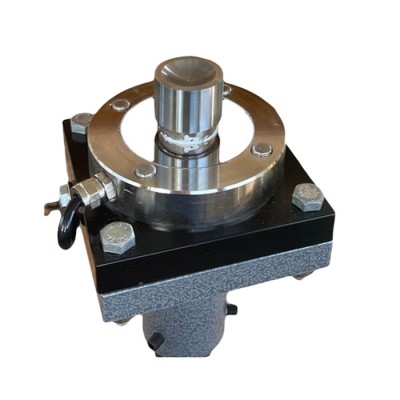

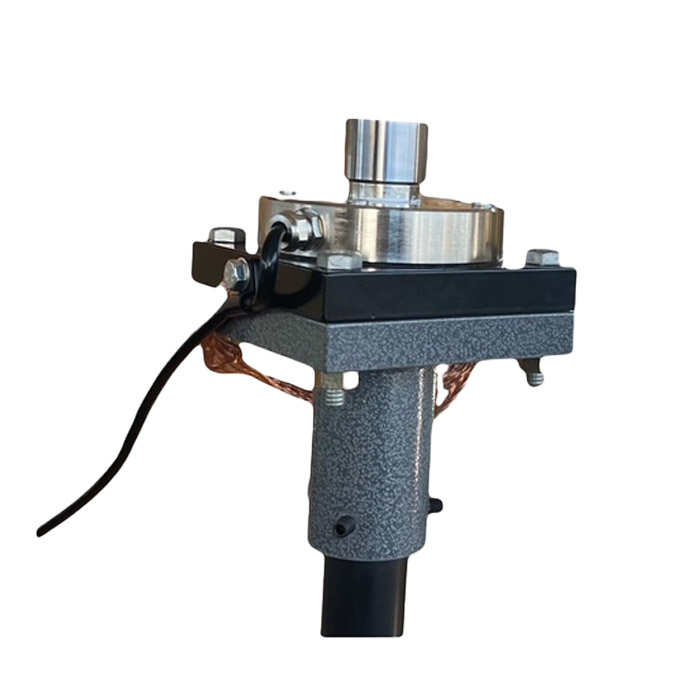

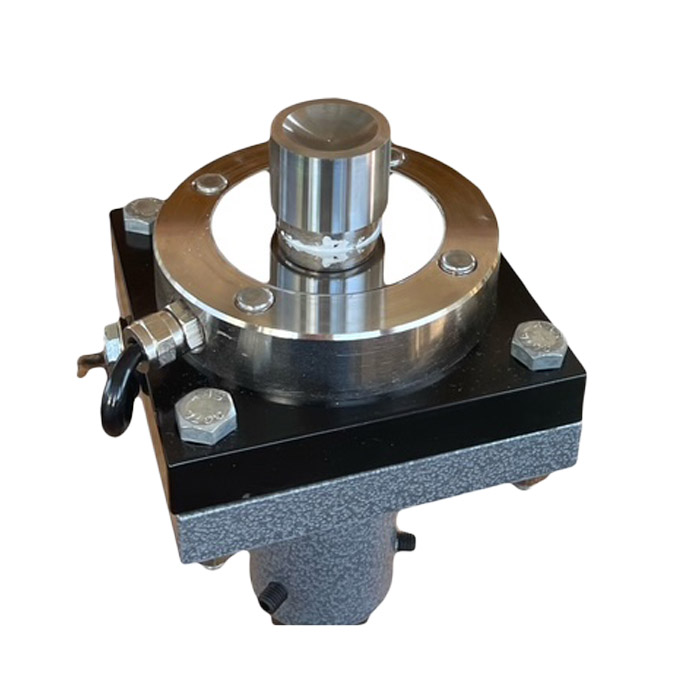

Each of the three 10,000 LB. scales attach to the top of your jack. These are wired scales to hold accuracy. They have German quick disconnect connectors for easy storage. The overall length of the separate cable Is 30 plus feet. The scale is powder coated Hammer Tone Gray and flat black. Although these units are water resistant, they should never be washed by hose or high pressure. Gentle hand cleaning should be all that is needed to keep your scales looking new.

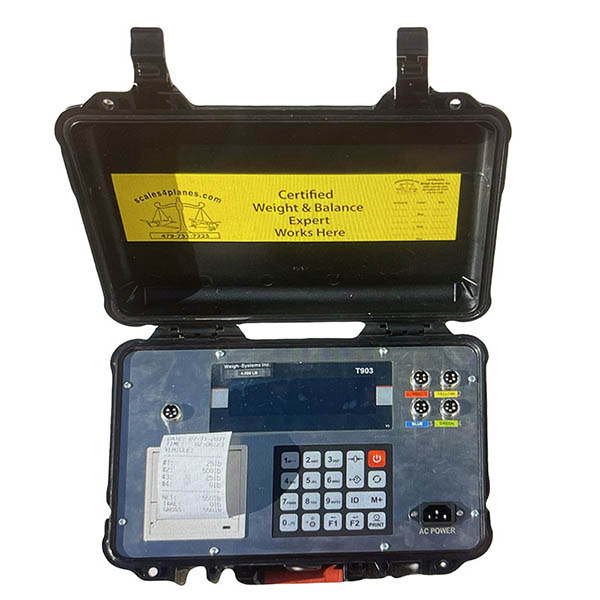

The external display reads out to the nearest 1 LB and features an LCD backlight that comes on with motion and stays on for enough time to record your reading accurately. The scale never turns off unless you tell it to. Only the backlite is on a timer and comes back on anytime you cause a little motion. The suitcase unit is powered by an A/C adapter. The scales come certified and currently satisfies all FAA requirements for 12 months. Recertification is available at the manufacturer for an additional cost of $35.00 a Scale or $105.00 for a set of 3 plus shipping. It is recommended to perform an inspection every year, but most scales will hold their calibration for much longer. Instructions are available so that calibration can be performed by scale technicians in your area. The warranty is 12 months covering any manufacturing defects. The battery is not covered by warranty, but with care should last several years. |
