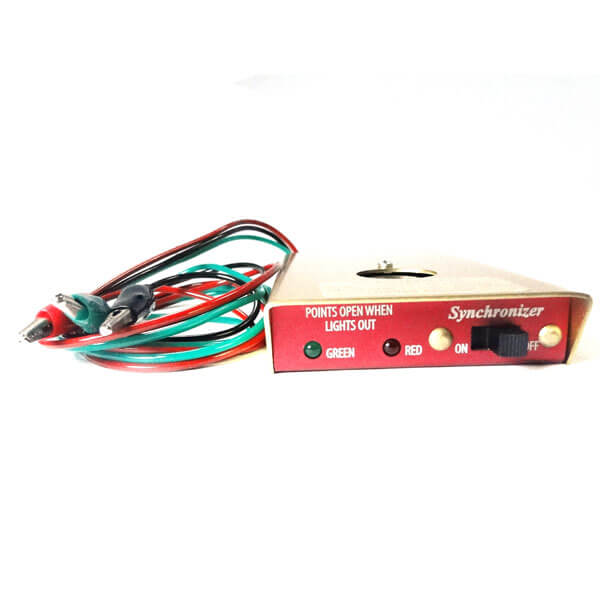

Inductor Magneto Synchronizer - Dual With Tweeter
MFR Model# 22095
Overview
|
This INDUCTOR Magneto Timing Device is a new concept utilizing the latest digital integrated circuitry, thus eliminating the need for the battery draining mechanical buzzer found in most of the older magneto timing lights. The timing indicators are light emitting diodes (LEDs) rather than the commonly used incandescent bulbs, further extending battery life. Since the device measures change of inductance in the magneto coil, it will not give a false reading should the clip leads pop off or become shorted. The INDUCTOR can also be used as a relay coil tester to determine whether the coil is functioning.
One of the INDUCTOR's most convenient features is its compact size. It measures .75 by 3 by 5 inches and is packaged in an anodized aluminum case that will neither melt nor break. It fits into the mechanic's tool box or shirt pocket and weighs only nine ounces. The INDUCTOR is powered by a 9-volt Duracell battery. With the inherent low power drain of the device and prudent use of the on-off switch, the battery should function for as long as its shelf life. If the LEDs fail to toggle when the magneto points open or close, it is an indication that the battery needs changing. |
Specifications
- Model: Dual magneto synchronizer with four phase audio signal
- Latest digital integrated circuitry
- Bright L.E.D. read-out
- Color coordinated leads to L.E.D.'s
- Electronic tweeter provides additional audio indication of operation
- Compact Size: .75 x 3 x 5 inches
- Magneto leads four feet long
- Measures change of induction in oil
- Long battery life
- Strong anodized aluminum case
Documents
Reviews
Worked like a charm! Read the directions! Lights go out when points open. It measures impedance, not continuity.
Verified Purchase
Dual Magneto Synchron With Tweeter
Works great. Exactly what was needed.
Verified Purchase
Dual Magneto Synchron With Tweeter
This device works as advertised. The Green and Red LEDs light up prior to the ignition point trigger and they go off exactly at the ignition point. When LEDs are off, there are different tones for each channel that will sound, so it is trainable to the users ear which channel is firing before the other. Setting up dual magnetos is straight forward. This is a fair priced easy to use system.
Verified Purchase
Dual Magneto Synchron With Tweeter
great tool. thanks
Verified Purchase
Dual Magneto Synchron With Tweeter
Came ready to use with a battery installed. The tweeter and LEDs are clear and easy to use.
Verified Purchase
Dual Magneto Synchron With Tweeter
Works absolutely fine, very satisfied with the choice
Verified Purchase
Dual Magneto Synchron With Tweeter
Verified Purchase
Dual Magneto Synchron With Tweeter
came quick, worked great! fantastic little box for the price
Verified Purchase
Dual Magneto Synchron With Tweeter
Good product, easy to use
Verified Purchase
Dual Magneto Synchron With Tweeter
My experience with the magneto synchronizer buzz box was like attending a comedy show for engines! Setting ignition timing on my aircrafts piston engine was never this entertaining. The buzz box not only synchronized my magnetos flawlessly but also gave me a hilarious soundtrack of buzzing noises, making the whole process feel like a high-stakes game of musical chairs for spark plugs. Who knew engine maintenance could be this much fun? Highly recommended
Verified Purchase
Dual Magneto Synchron With Tweeter
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The ATS one has the buzz alarm.
Yes this can be used to time a single mag.
Yes this has an audio signal.
