Home / Tools / Hand Tools / Wrenches /Milwaukee M12 3/8 inches Right Angle Impact Wrench With Friction Ring (Bare Tool) 2564-20
Main Image

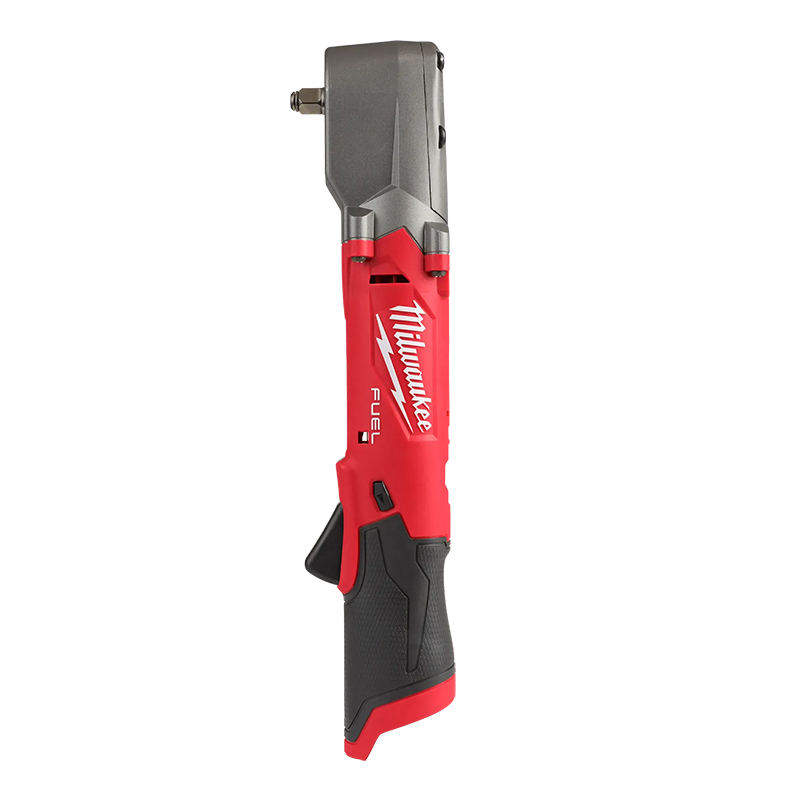

Milwaukee M12 3/8 inches Right Angle Impact Wrench With Friction Ring (Bare Tool) 2564-20

0 Reviews 0 Answered Questions
$325.00/Each
Quantity
Add to Wishlist
Part# 12-06227
MFR Model# 2564-20

Overview

M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring is the industry's most powerful right angle impact wrench. You’ll be able to easily remove stubborn bolts and fasteners with up to 220 ft-lbs. of nut-busting torque without kickback.

This cordless right angle impact wrench also gives you maximum access with ultimate control in hard to reach applications. Milwaukee's durable cordless impact wrench easily fits into tighter spaces than traditional pistol-grip impact wrenches with a profile head of only 2.2”.

This allows you to be more productive by decreasing your need for socket extensions often used with pistol-grip impact tools. The 4-Mode Drive Control delivers unmatched control in various fastening and bolt removal applications. Modes 1-3 provide RPM and IPM adjustments for maximum precision, and Mode 4 is equipped with Auto Shut-off in forward and Bolt Removal Mode in reverse. Milwaukee's Auto Shut-off Mode will prevent over-tightening of bolts by applying no more than 15 ft-lbs. of torque. Bolt Removal Mode provides more control by drastically slowing down RPMs once the bolt is loosened.

The REDLINK PLUS™ Intelligence ensures you achieve maximum performance and protection against overloads, over-heating, and over-discharge.
This cordless 3/8” impact wrench is powered by MILWAUKEE® M12™ REDLITHIUM™ Battery Packs (not included), which are compatible with all M12™ tools, delivering more work per charge and more work over the life of the pack.

Features

  • POWERSTATE Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market
  • A 2.2" head profile design allows for more access in tight spaces
  • Mode 1 RPMs: 0-1,550; Mode 2 RPMs: 0-2,300; Mode 3 RPMs: 0-3,000; Mode 4 RPMs: 0-3,000
  • Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
  • Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
  • Mode 1 IPMs: 0-1,350; Mode 2 IPMs: 0-2,700; - Mode 3 IPMs: 0-3,600; Mode 4 IPMs: 0-3,600
  • The long body profile of 14.17" allows for more access in hard to reach spaces Designed with an impact mechanism that prevents kick-back LED light to illuminate the work area
  • Premium rubber overmold withstands corrosive materials and provides increased comfort when in use

Specifications

  • Wrench Type: Right Angle
  • Anvil Type: Friction Ring
  • Anvil Size: 3/8"
  • IPM: 0 - 3,600
  • Maximum Torque: 220 ft/lbs
  • Fastening Torque: 200 ft-lbs
  • Head Profile: 2.2 in
  • Nut-Busting Torque: 220 ft-lbs
  • Power Source: Cordless
  • Motor Type: Brushless
  • Material Composition: Aluminum
  • Length: 13.89 in
  • Weight: 3.05 lb
  • Height: 2.81 in
  • Width: 2.32 in
  • Voltage: 12V
  • Brushless: Yes
  • Battery System: M12
  • DRIVE CONTROL: 4-Mode
  • Maximum RPM: 3000 rpm
  • RPM Range: 0 - 3,000

In The Box

  • (1) M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring (Bare Tool)(2564-20)
