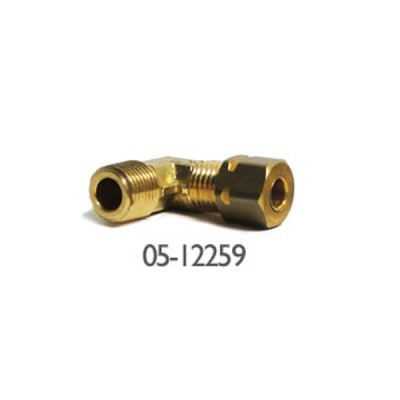

SAE MALE ELBOW 69SM-03 X 02

$7.50/Each
Part# 05-12259
MFR Model# 69SM-03X02
DescriptionTube O.D.Thread SizePart Number
69SM-03 X 02 - Male Elbow3/16"1/8"05-12259

Overview

Brass SAE male elbows for NSR tubing.

Reviews

These are perfect for your brakes. You do not need a ferrel for the 3/16 size. Do not over tighten and they will work great.

Greg M
May 5, 2021

These do not work with the nylaflow tubing for 3/16 size. There is no tubing insert so theres nothing for the sleeve and nut to compress onto. If you installed these as-in, your tubing will collapse and leak. None of the SAE fittings in 3/16 size have inserts, not just these male elbows. This makes them all unusable. Interestingly the 1/4 size fittings have the inserts and work just fine. I came back to Aircraft Spruce to see if they just forgot to include the inserts, but was told inserts are not supplied with the fittings from their supplier. Pretty frustrating.

Brian
July 19, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What thread form do these fittings use?

The fittings have pipe thread on one end and a compression nut for the tube on the other end.
