MGL Vega AHRS-3 Attitude Indicator

$882.00/Each
Quantity
Add to Wishlist
Part# 11-20923
MFR Model# VEGA-AHRS-3

Overview

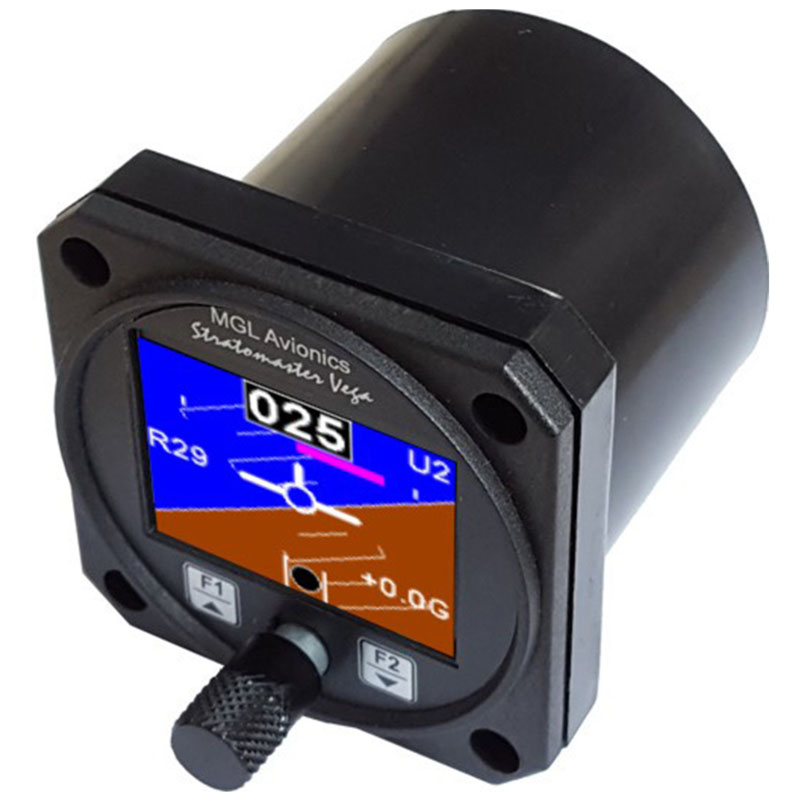

The AHRS-3 is a 2 1/4” (57mm) sunlight readable color display instrument providing an artificial horizon from built-in inertial sensors.

The AHRS-3 does not require the MGL Avionics SP-7 sensor package in order to display the attitude, but does require the MGL-Avionics SP-6 compass sensor package to display heading.

Specifications

Power Specs Voltage Input: 8-30 Volts DC with Over Voltage and Reverse Polarity Protection
Current Draw (13.8V): 73mA Backlight High, 33mA Backlight Low
Screen Size: 1.8"
Resolution: 160×128
Backlight: 1000 cd/m2 brightness, sunlight readable LED backlight
Physical Specs Unit Size: 60mm x 60mm x 68mm
Fits in: 2 1/4" Instrument Cutout
Weight: 120 grams (excluding wiring)
Brand MGL Avionics
