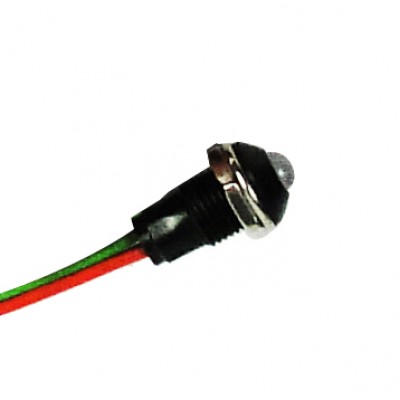

Be sure the light return lead is connected to a positive power source (through a circuit breaker or fuse), and not to ground.
The alarm light signal is an open collector(sinks to ground) capable of sinking 150 ma. Connect one side of the light to +V (protected by fuse or CB) and the other to the alarm light wire. It may be paralleled with other similar operating alarm signals.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: Will this work for an JPI EDM 700 as well?
No. The manufacturer does not list this light as a function for the EDM 700.
