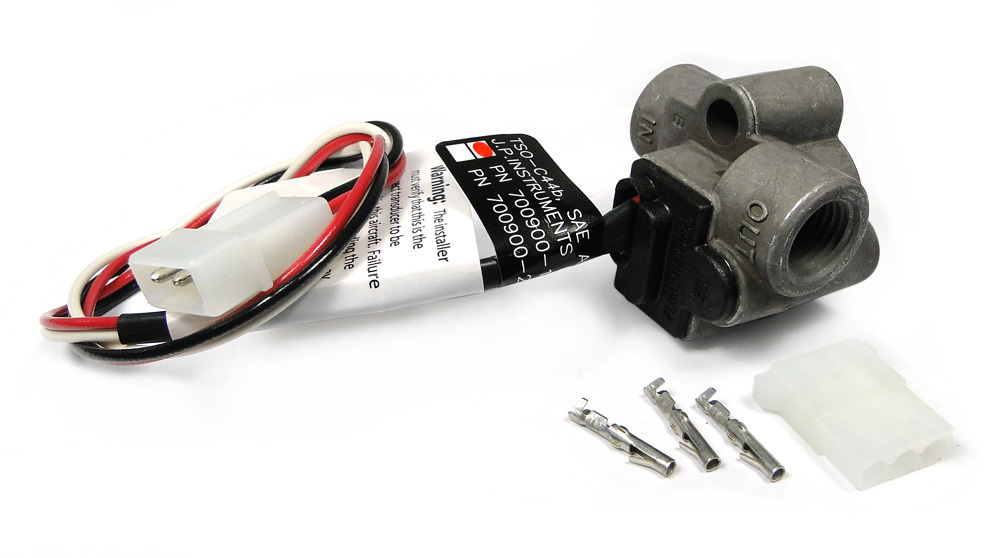

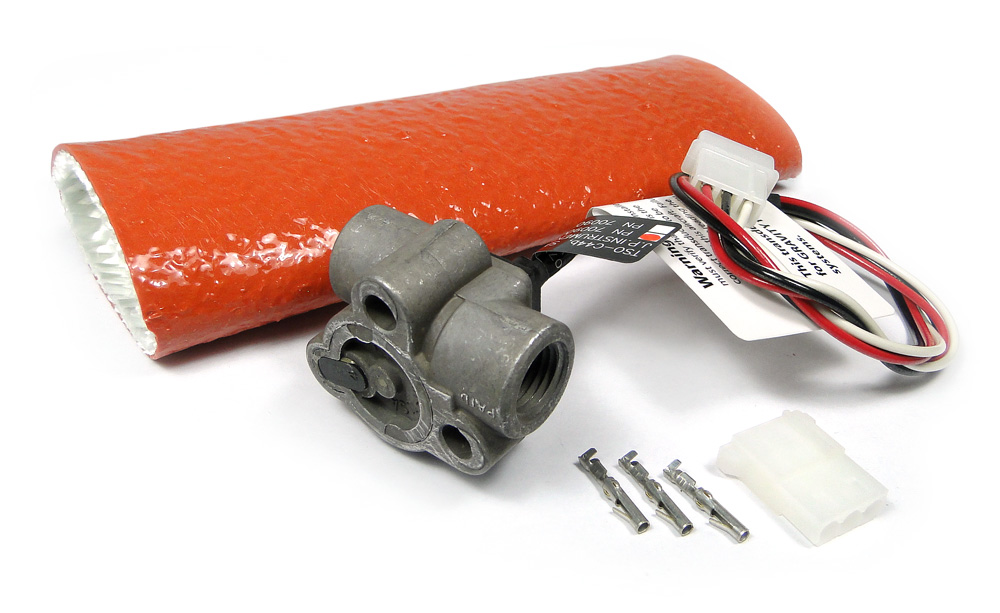

JPI EDM PRESSURE FED FUEL FLOW TRANSDUCER FLOSCAN 201 FOR FUEL PUMP AIRCRAFT

$498.00/Each
Quantity
Add to Wishlist
Part# 10-27089
MFR Model# 700900-1

Overview

JP Instruments EDM 700 Transducer (Fuel Pump).

Reviews

Works as advertised

Dan L Verified Purchase

JPI EDM PRESS FUEL FLOW TRANSDUCER FLOSCAN 201

September 2, 2021

No issues. Transducer replaced on that I bought new in September 2018 and died on a flight a few weeks ago. Installation was simple, reset the ‘K’ factor and worked perfectly on last trip to Virginia and back. Very accurate. Drives a JPI EDM 730.

Stuart S
March 29, 2021

The preinstalled wire connecting is too short!! It should be approximately 3 feet long to keep the connector away from hot & oilly engine compartments .

Keld J
May 17, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is part number 10-27089 the same as JPI part number 700901?

Yes, we order part number 10-27089 under part number 700901 from JPI.

Q: What is the K Factor for this JPI EDM 700 fuel flow transducer?

The K factor is 29.00 for the JPI fuel flow transducer.

Q: I need a JPI part no. 700900-1 fuel flow transducer. Your search engine took me to your part number 10-27089 but I cant verify from the product description that this is in fact the 700900-1. Can you tell if it is? The part is stamped 700900-1, not 700901 Thanks

Yes, our part number 10-27089 is JPI part number 700900-1.

Q: How long is the cable on this transducer FXT-201?

Approximately 9 inches.

Q: Can i install your unit in the Rotax 912iS engine and if yes, where would you put them in the fuel system? I guess, i would need 2 of them for a differential measurement, right?

This will work on the 912IS engine. He will need two of them. Install one after the fine filter. The second one needs to be located on the fuel return line after the engine.

Q: Does this JPI EDM transducer unit come with a warranty? If so, how long?

Yes, this part comes with a 12 month warranty.

Q: Is this JPI EDM transducer part # 10-27089 for a 12 or 24 volt system?

Per the manufacturer the electrical specifications are: 12 to 15 VDC between RED (+) wire and BLACK (-) wire. 30 to 50 mA at 12 VDC.

Q: Will this transducer work with the EDM-930?

Per the installation manual, yes this is compatible.
