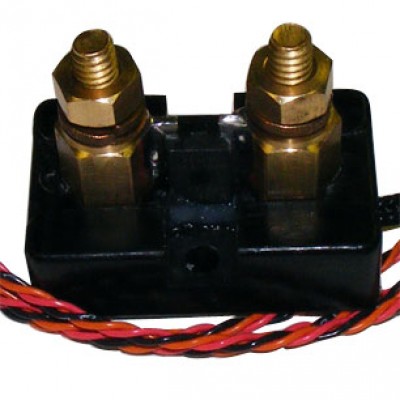

The A200-HAS is an economical and precise solution for DC current measurement in electrical systems up to +/- 100A in capacity.
The output of the device has a positive slope (Vcc / 2) when an increasing current flows through the primary copper conduction path. The internal resistance of this conductive path is 130 ľO typical, providing low power loss.
The thickness of the copper conductor allows survival of the device at up to 5× overcurrent conditions. The terminals of the conductive path are electrically isolated from the sensor leads and provide a minimum isolation of 3,000V.

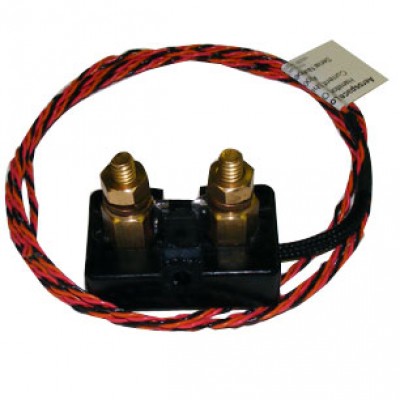

Supplied with a 48" color coded cable.
