Reiff XP System - High Wattage - Large Cylinder - 4-Cylinder

$1587.00/Each
Quantity
Add to Wishlist
Part# 08-19498
MFR Model# TXPL4

Overview

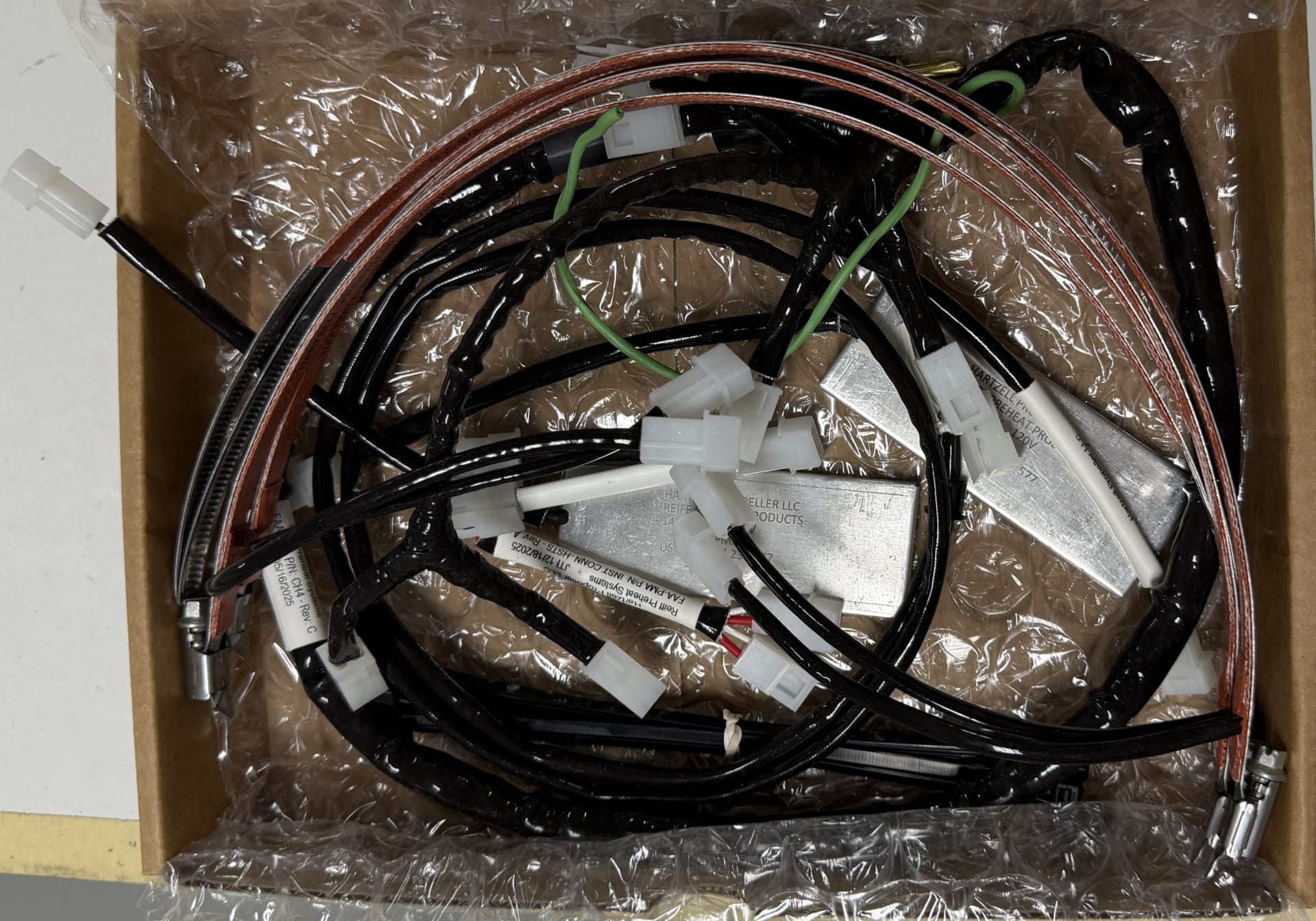

100 watt band heaters clamp around the cylinders and a two 100 watt aluminum HotStrip element epoxies to the oil sump (Epoxy NOT included).

Heats your engine about 120°F above ambient overnight.

NOTE: “EPOXY” or equivalent adhesive required for install and NOT included. 2 packets required per system.

Specifications

Eligibility - FAA PMA: Continental: A-65, A-75, C75, C85, C90, C-125, O-200, IO-240, IO-346, A-80, Lycoming: O-290, O-320, IO-320, LIO-320, AIO-320, AEIO-320, O-340, O-360, IO-360, LO-360, AIO-360, TO-360, LTO-360, VO-360, IVO-360, HO-360, HIO-360, LHIO-360
Reiff Voltage: 120 volt
Same As Similar To: May be installed as "Same As Similar To" on engines that are similar to the "Eligibility - FAA PMA" list but no FAA certification of those installs available. < IO-390-A, AEIO-390-A, etcetera...> Check sump for if both HotStrips can be installed.
Experimental install possible: ~ Titan: X-340, X-343, X-370.
Amp/Watt/Volt/Ohms: 5.0 Amps / 600 Watts / 120 Volt / 24 Ohms; Tolerance ±10%
Cylinder Piston/Radial: 4
