Flange For 2 Inch Ducting

$41.50/Each
Quantity
Add to Wishlist
Part# 08-04140
MFR Model# DL-012

Overview

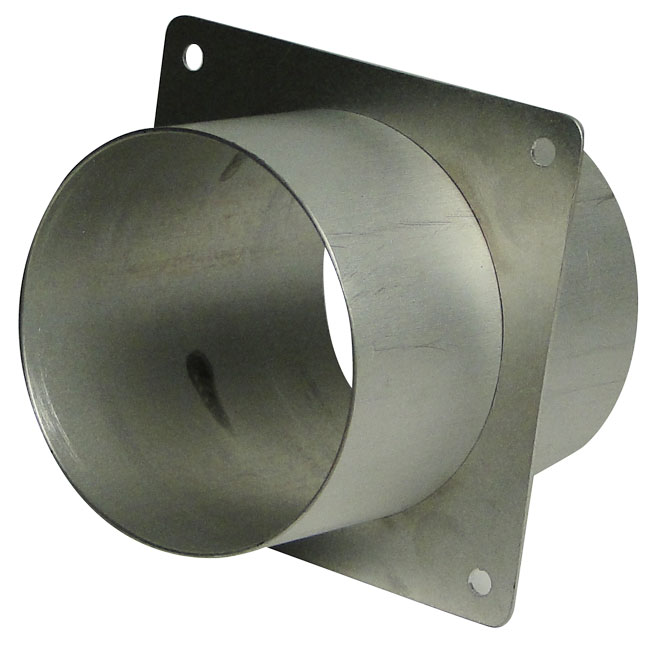

Accepts 2” ducting on both ends. Helps route ducting through bulkheads, firewalls, etc. Especially useful for getting heat to the back seat of the aircraft. 2-1/2” square plate with 2” tubing projecting 1” from each side. Wt:0.7 oz.

Reviews

This is a very nice bulkhead fitting. Fits 2 fresh air hose perfectly.

Anthony R Verified Purchase

FLANGE DUCT FOR 2" TUBING

August 24, 2021

This is a great fabricated item that saves me time from doing it myself. Looks well constructed and fairly sturdy although I may consider adding some weld bead at the mounting interface. I ordered 2 and each came from a different location. This one appeared well boxed for shipping, but a corner of the flange was bent. It’s possible the damage was due to it being packaged with their ginormous catalog, since the second one arrived in its own packaging just fine. The alternative is it was pulled from the shelf damaged, which I hope is not the case.

Ryan S Verified Purchase

FLANGE DUCT FOR 2" TUBING

March 31, 2023

All that I needed was a light weight 2 feedthrough airduct connection to feed fresh air from between the inter cylinder baffles and send it to a newly installed high output alternator that I just installed.

Robert E
August 24, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What size are the four mounting holes on this flanged duct?

The ID of the mounting holes are .127".

Q: What are the dimensions of the square flange? What is the distance between adjacent holes?

The dimensions of the square flange is 2-1/2"x2-1/2". The distance between the adjacent holes is 2.1".

Q: What is the OD of the protrusions?

This will have a 1.97" outside diameter where the ducting will be attached to.

Q: What material is this part made out of?

Per Vendor: 2 inch Aluminum tubing with an aluminum flange.

Q: What is the ID?

1.935"
