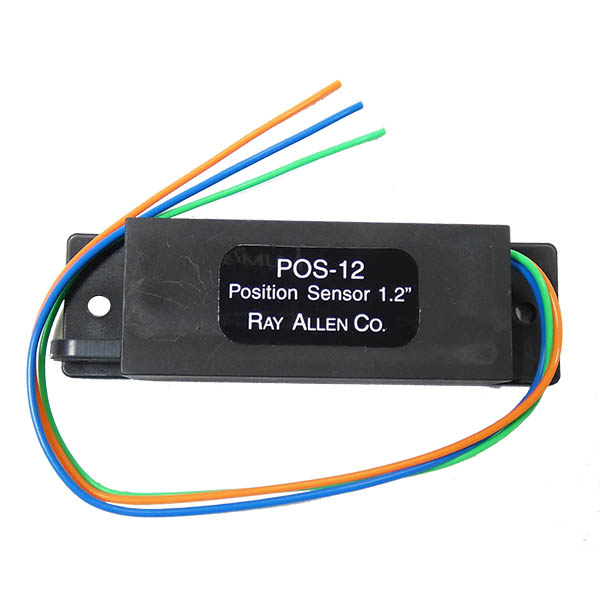

RAC POS-12 POSITION SENSOR

$86.75/Each
Quantity
Add to Wishlist
Part# 11-01321
MFR Model# POS-12

Overview

Combined with a Ray Allen indicator, this sensor can be used to measure the position of wing flaps, cowl flaps, or many other mechanisms.Small enough to be installed anywhere, (note: T2 & T3 servos have their own built-in sensors) 1.2" travel.

Specifications

  • Size: 2.7"l x 0.8"w x 0.5"h
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Purchased this to provide position indication of my speed brake. Tied into my MGL iEFIS.

William D
December 7, 2017

Q&A

Q: What is the difference between the RAC POS-12 & POS-5 sensors?

The difference is the length of travel. The POS-12 is 1.2" travel. The POS-5 is 0.5" travel. If you unsure which one to use for your application, please verify with sales at 877-477-7823.

Q: Could you tell me the energy comsumption of the POS-12 Position Sensor?

Per the manufacturer, the POS-12 does not consume any energy because as it is just a sensor. You would need to find the voltage of whatever device you have connected to this sensor.

Q: Are these waterproof (for use on float wheels)?

No, this sensor must be protected from water in order to function.

Q: Can the POS-12 be used with Dynon D120 to show trim position (on the D120)?

Yes, the D120 will interface with the POS-12 to show trim position.

Q: Can the POS-12 be used with Dynon D120 to show trim position? Can the POS-12 be used with Dynon Skyview D1000 to show trim position?

Yes, both the D120 and D100 are able to display trim position from a sensor such as the POS-12.

Q: What is the distance between the two fixing holes on this RAC POS-12 position sensor?

The distance between the 2 holes (center to center) is approximately 2-5/16".

Q: What is the electrical connection for the three wires on the POS 12 My Dynon HDX only shows one wire going to the POS 12?

Orange wire: Connects to Orange wire of RP4 LED indicator.
Blue wire: Connects to Blue wire of RP4 LED indicator.
Green wire: Connects to Green wire of RP4 LED indicator.
