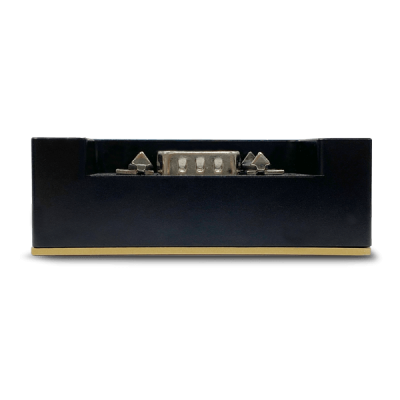

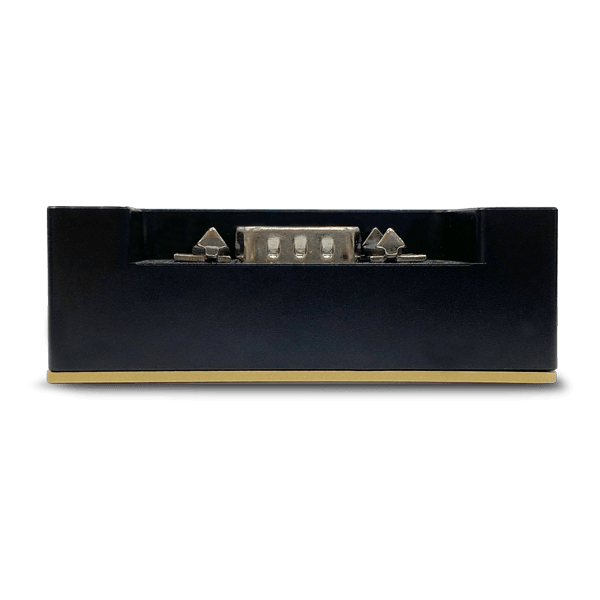

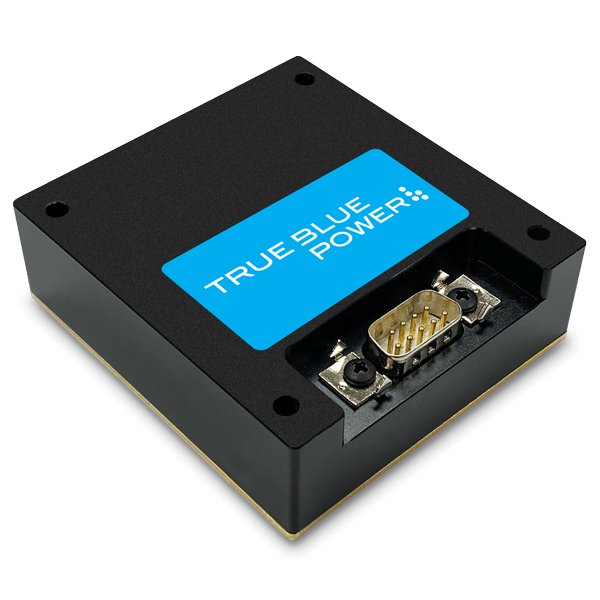

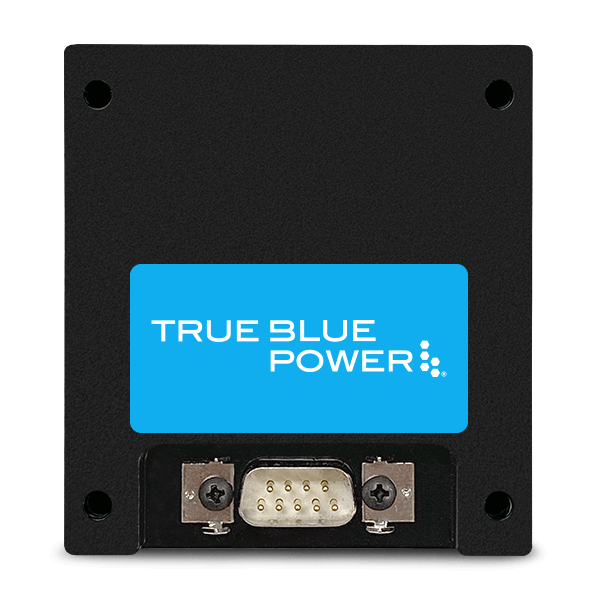

True Blue Power Emergency Battery Power Supply TS6

0 Reviews 0 Answered Questions
$858.00/Each
Quantity
Add to Wishlist
Part# 10-07768
MFR Model# 6430006-1

Overview

Designed for a 28V electrical bus, the TS6 Emergency Battery Power Supply (EBPS) provides DC power to aircraft electronics when main aircraft power fails, supporting one instrument at a time. The unit can be fully recharged or maintain existing full charge, via the aircraft’s primary power bus. Additional functions include analog state-of-charge, 80% capacity dispatch test, and discharge shutdown.

The TS6 is compatible with Mid-Continent Instruments and Avionics 2-inch digital instruments, the Flex® Custom Function Display, and avionics or components that require 28 VDC input.

Features

  • Utilizes Nickel Metal Hydride (NiMH) battery technology
  • Unit can be fully recharged, or will maintain existing full charge, via aircraft’s primary power bus
  • Rugged metal chassis and DB9-style connector for electrical interface
  • Recommended 2-year maintenance cycle (full charge and discharge capacity check)
  • Designed and built in Wichita, Kansas USA
  • Two-year limited warranty
  • FAA TSO Certified

Specifications

  • Capacity: 6 Watt-hour
  • Input Voltage: 24.5–32 VDC
  • Output Power: 24 VDC nominal 0.25 amps max
  • Weight: 0.5 lbs
  • Dimensions: 2.75”L x 3.00”W x 0.94”H
  • Protection: Short circuit, over temperature, under-voltage, and over-voltage
  • Mating Connector: DB9-style (MCIA Kit P/N 8017287)
  • Certification:
  • Certified to FAA TSO-C173a
  • Qualified to DO-293A and RTCA DO-160G
