- Photo may represent series and not specific product
- SHARE

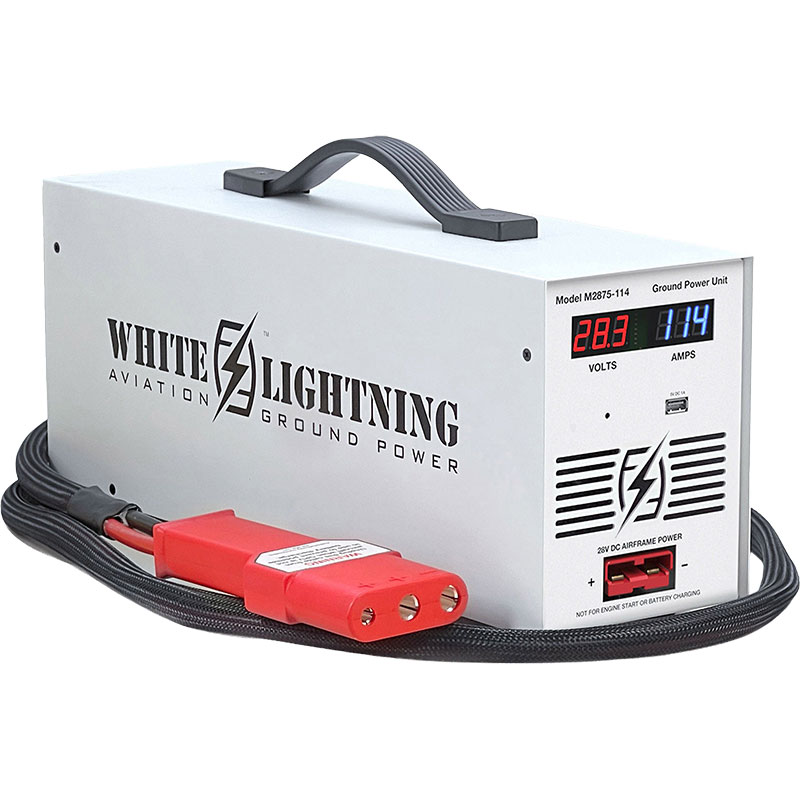

White Lightning M2875-114 High Output GPU with 3-pin Oval Plugs
$2919.00/Each
Part# 11-21282
MFR Model# M2875-114
MFR Model# M2875-114
Overview
|
The White Lightning M2875-114 delivers up to 114 amps of clean, regulated 28V DC power at a price that makes high-capacity aircraft ground power more accessible than ever. Designed for mechanics, MRO facilities, avionics installers, aircraft dealers, and owner-pilots, it provides reliable airframe power for demanding ground operations without the premium price of traditional high-output GPUs. Whether you're performing powered preflight inspections, updating avionics databases, conducting maintenance, training crews, or powering aircraft in the hangar, the M2875-114 provides dependable, stable power you can count on. Why Choose the M2875-114?
|
Features
- Up to 114 amps continuous output at 28V DC
- Universal 90-260V AC input
- Up to 75 amps from a standard 120V outlet
- Full 114 amps when powered by 200-260V AC
- Adjustable output voltage from 27.5 to 29.0V DC for voltage-sensitive applications

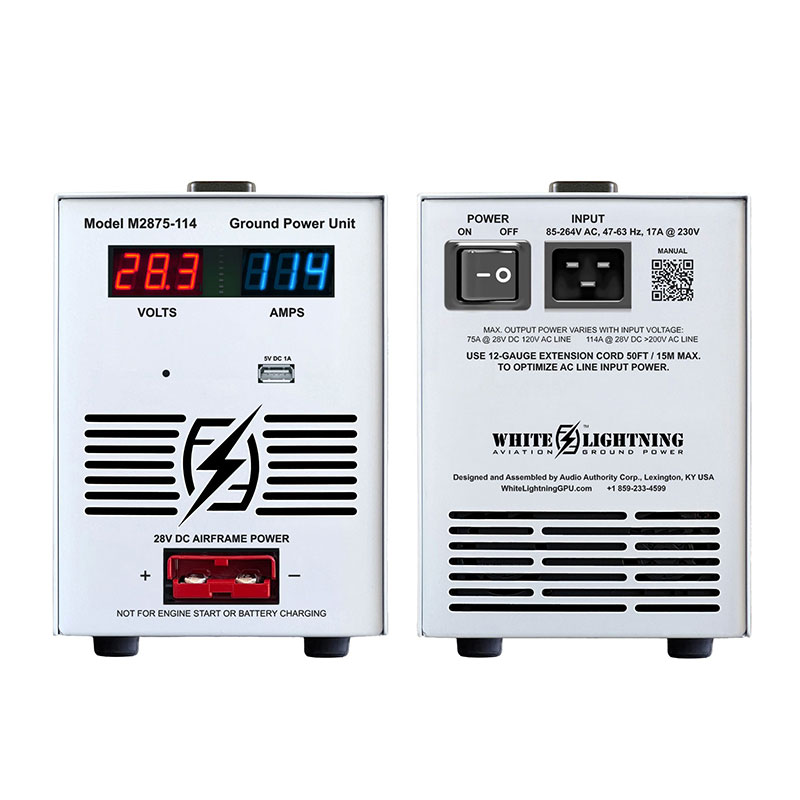

- Large digital voltage and current displays
- Heavy-duty 8-foot detachable output cable with AN2551 external power connector
- Heavy-duty 10-foot AC input cord
- One-year limited parts and labor warranty
Specifications
- Model: M2875-114
- Function: Continuous external airframe power (not for engine start)
- AC Input Requirements: 90-264 volts, 47/63hz, 17A @ 230 volts AC, 18.7A @ 114 volts AC
- 115V AC Input Connection Supplied: detachable 10' NEMA 5-15P rated for 20A - PN: 801-192

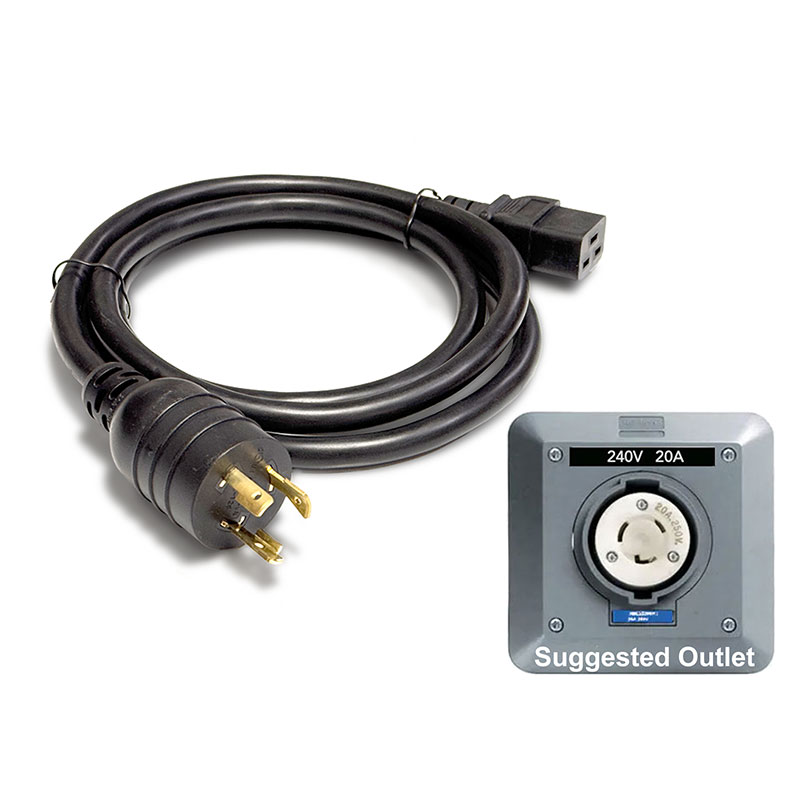

- 230V AC Input Connection Supplied: high voltage detachable 6' NEMA L6-20P lead - PN: 802-905 (50' extension cable sold separately)
- Output Power, Watts: 3200 @ 230V AC, 2400 @ 115V AC
- DC Output Voltage: 28.3 volts
- DC Output Current: 114A max continuous with > 200-volt, >70A max continuous with >115-volt
- Output Meter Indication: Red and blue LED

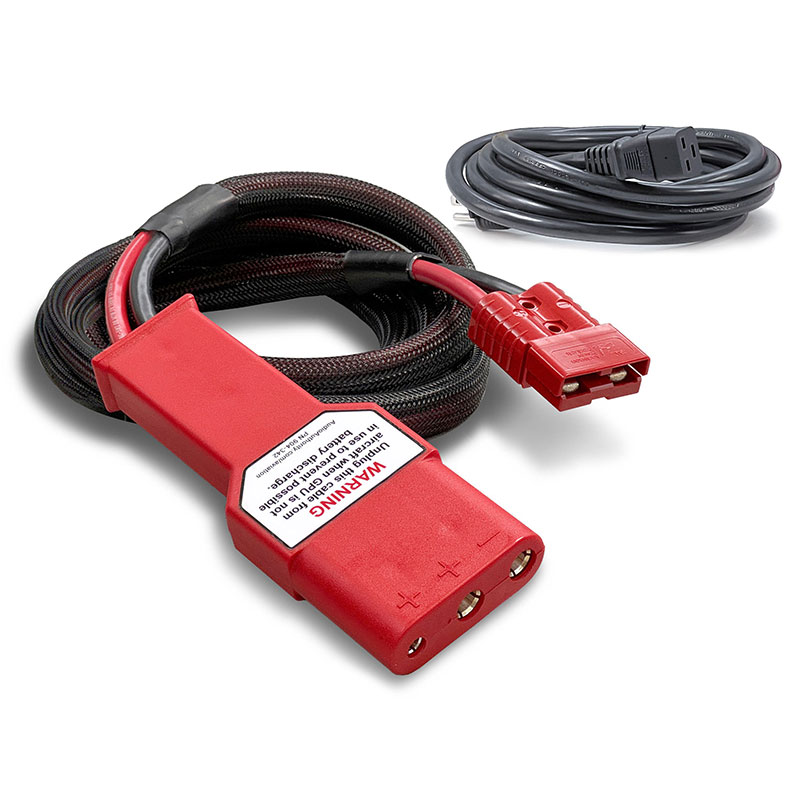

- Output Connection: Heavy duty detachable 8-ft. 4 AWG, SB120 to 3-pin oval AN2551 (Cessna/NATO) - PN: 802-908
- Protection: Overload / over voltage / over temp / short circuit
- USB Port Power: Maximum 1.5A
- Operating Temp Limits: -20C to +50C
- Chassis Dimensions: 8 x 5.38 x 19.5 (HxWxD, inches. Includes handle and feet)
- Chassis Weight: 18.3lbs (without cables)
- Carrying Weight: 24.9lbs (with AC input and aircraft output cables)
- Shipping Weight: 30.75lbs (including cables and packaging)
- Warranty: Limited 1-Year parts & labor
Applications
- Powered preflight inspections with battery top-off
- Avionics and flight deck database updates
- Cockpit training and procedures
- Aircraft maintenance and troubleshooting
- Mobile MRO operations
- General hangar power for 28V aircraft
