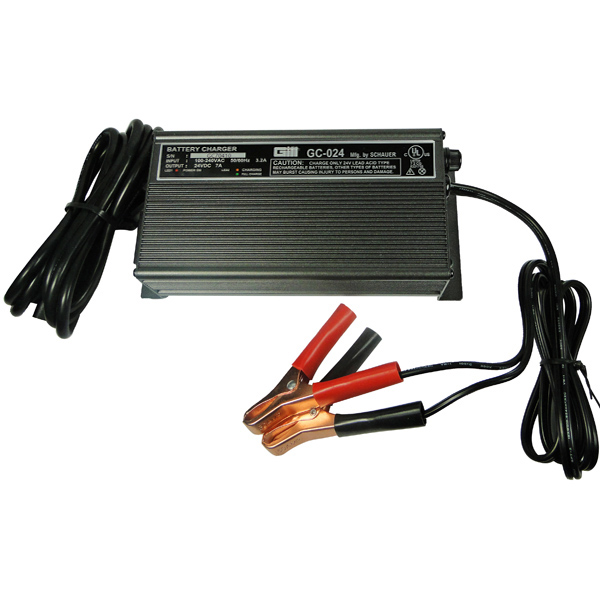

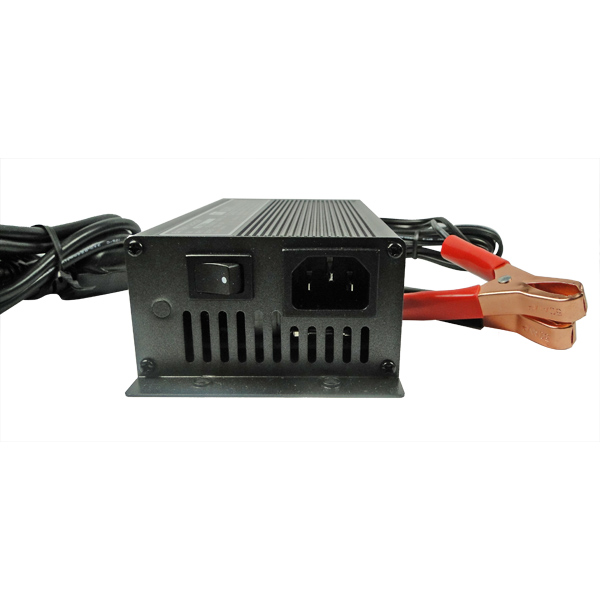

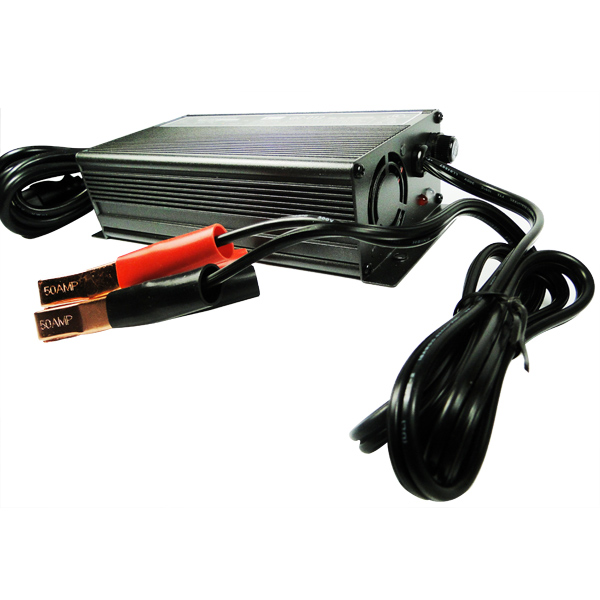

GILL GC-024 24VDC CHARGER 110VAC

$266.95/Each
Quantity
Add to Wishlist
Part# 11-10570
MFR Model# 60218

Overview

IMPORTANT: These chargers will only function when connected to 110-120V input. Do not connect them to 220-240V or you may damage the charger.

Light weight / High strength aluminum case, Fully automatic: 3 stage charger can be left on the battery for long periods, Charge Status LED's: Power on, charging and full charging.

Features

  • Light weight / High strength aluminum case
  • Fully automatic: 3 stage charger can be left on the battery for long periods
  • Charge Status LED's: Power on, charging and full charging
  • Circuit protection: reverse polarity and short circuit protected (fused)
  • UL and CE approved
  • Power cord length 6 feet and 4 foot Charger cord with alligator clips
  • Charge control: Modified constant current charge to a constant finishing voltage, then to a float standby
  • Supported with a 2 year warranty

Specifications

  • Input: 110-120 VAC
  • Input Frequency: 50/60 Hz
  • Output: 7 Amps
  • Output EQ: 28.8 VDC +/-0.2 Volts
  • Output Float: 26.3 VDC +/-0.2 Volts
  • Dimensions: 7.5"W x 3.5"H x 1.9"D
  • Weight: 2.1 pounds
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Shoulda got one of these a long time ago. Works great!

William L
April 12, 2020

Getting use to an aircraft I just purchased as well as ATC communications. Mistakenly left something on and ran battery down to a point where starter wouldnt work. Overnight charge with this and I was back in business.

Tony
December 29, 2019

great little 24v charger, just what i needed.

Roland D
February 17, 2018

Q&A

Q: Is this the same as the GSE 076/PN GC-024E that is required for use in the Embraer Phenom 300 aircraft?

No, for the GC-024E, please see our part # 11-13011.

Q: Is this good for the initial charge of a new Gill G-243 as used in Piper Archer III?

Yes, 11-10570 can be used for the initial charge on the G-243 battery.

Q: Can this Gill GC-024 charger be used as a maintainer, ie left on the battery for long periods of time?

Yes, it can be left on the battery for long periods of time.

Q: Can this Gill GC-024 charger be used on a 24 volt AGM battery?

Yes, it can.

Q: Can this be used to maintain dual 12v batteries in series installation?

Yes.
