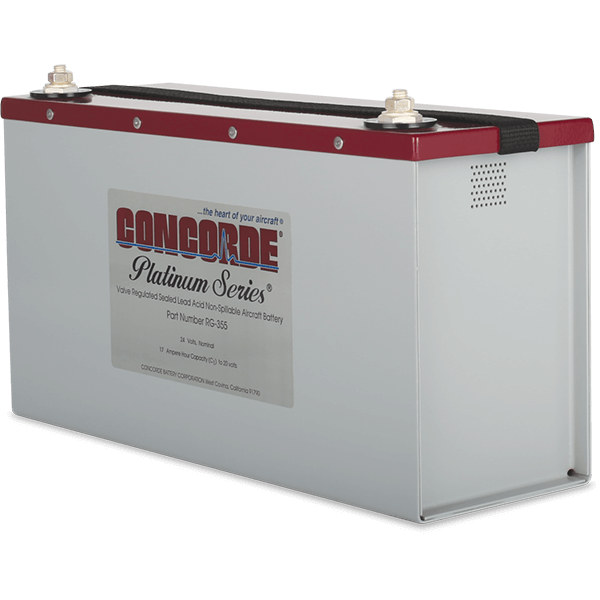

The RG-355 is a Concorde Platinum Series Aircraft Battery. The Platinum Series is comprised of premium hand made AGM Aircraft Batteries with excess power for many applications.
Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

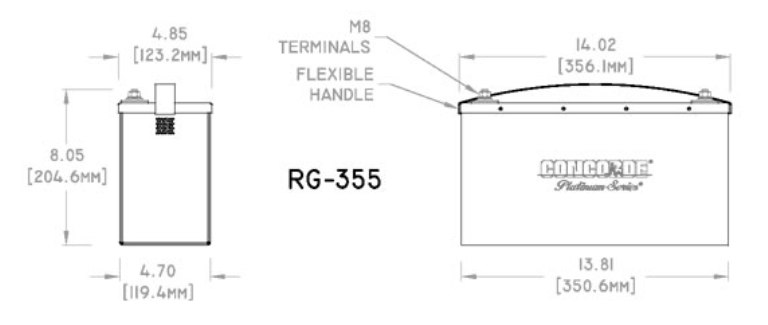

RG-355 is housed in an aluminum container that includes two perforated vent areas machined into each side with riveted aluminum cover. Lifting straps across cover. Fixed with foot styled hold downs integrated at both ends of the battery. Male threaded post terminals.
Superior starting power
Reliable essential power in the event of a generator failure
Low impedance design
Constructed with non removable vent valves - no addition of electrolyte or water required
Aerobatic: Non spillable at any altitude or attitude
Factory tested to assure airworthiness
Shipped fully charged and ready to install
Manufactured with absorbed glass mat separators (AGM)
Ships Hazmat EXEMPT
Primary Aircraft Purpose: Helicopter and Turbine Aircraft Battery
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Q: I need information to replace a battery in a Airbus EC120B Helicopter to a Concord battery. Do the battery will be delivery with the STC?
Per the supplier: Yes an STC can be had, a form must be filled out upon ordering. Please contact sales department for details on obtaining the STC paperwork.
