STRIKE FINDER® DIGITAL WEATHER AVOIDANCE SYSTEM

From $18.80 to $8708.00
Description Part Number Price Buy
Strike Finder Standard System
11-00348
$5205.00
Quantity

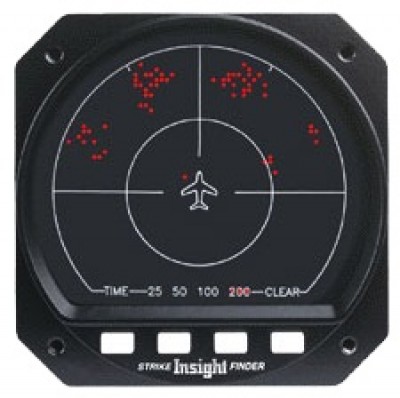

Strike Finder with LED Round Display
11-11283
$5191.00
Quantity

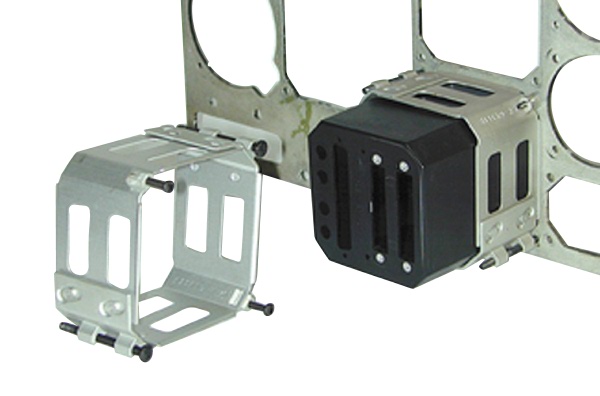

Strike Finder with LED 3ATI Display and Clamp
11-11285
$5364.00
Quantity
Strike Finder with LED Round Display with Gyro
11-11286
$6417.00
Quantity
Strike Finder with LED 3ATI Display with Gyro
11-11287
$6373.00
Quantity
Strike Finder with LED 3ATI Display with Gyro and Clamp
11-11288
$6510.00
Quantity
Strike Finder Upgrade
11-00349
$1733.00
Quantity
Strike Finder with Round Display Unit Only
11-14921
$3806.00
Quantity
Strike Finder System with Round Display
11-16513
$8521.00
Quantity
Strike Finder Display 3ATI Hole Rear Mount Unit Only
11-14922
$3806.00
Quantity
Strike Finder Display 3ATI Front Mount Unit Only
11-14923
$3806.00
Quantity
Strike Finder with 3ATI for Front Mount
11-16514
$8708.00
Quantity
Sensor Unit with Mounting Kit
11-14924
$2538.00
Quantity
Jet Systems Strike Finder System with 3ATI Display
11-16509
$8519.00
Quantity
Gyro Heading Stablization Unit Upgrade Only
11-14926
$1904.00
Quantity
Additional Harness Cable 4ft Increments
10-06715
$18.80
Quantity
Display Connector Kit Only
10-06717
$35.90
Quantity
Sensor Mounting Kit Only
10-06718
$35.90
Quantity
Sensor For Garmin /Apollo- Spine Mount B Format
10-06719
$1008.00
Quantity
Garmin/Apollo Sensor- Fire Wall Mount Z Format
10-06720
$1008.00
Quantity
Garmin/Apollo - Inline Mount - Z Format
10-06721
$1008.00
Quantity
Sensor For Bendix King - Spine Mount- B Format
10-06722
$1008.00
Quantity
Sensor For Bendix King - Fire Wall Mount - B Format
10-06723
$1008.00
Quantity
Sensor For Bendix King - Inline Mount - B Format
10-06724
$1015.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Required Order Form must be completed prior to order.

The STRIKE FINDER® Digital Weather Avoidance System detects and analyzes the electrical activity emanating from thunderstorms within a 200 nautical mile (nm) radius of the aircraft. A unique graphic display plots an accurate, reliable and easily-interpreted picture of electrical activity that you can use to circumnavigate the hazards associated with thunderstorms.

The STRIKE FINDER System analyzes the individual strike signal properties to determine the bearing, range and severity of the activity. Strike data is plotted on the display as single orange dots by range and azimuth, in relation to the aircraft symbol ("heads up"). As the number of lightning strikes increase, so does the number of plotted strike dots. Cells start to form indicating increased lightning activity.

Bearing and Range
Storm distance and bearing can be determined by using the Outer Range Ring and the Half Range Ring, in conjunction with the 30-degree Azimuth (1:00 and 11:00) markers. The Outer Range Ring is the outer boundary distance from your aircraft that strike dots are plotted in the selected range. The Half Range Ring is exactly half that distance from your aircraft. (Ex: 200 nm range selection gives a Half Range Ring distance of 100 nm).

STRIKE FINDER System Components
STRIKE FINDER has two components: These two components are connected with a shielded cable.

Display
The Display mounts in the aircraft instrument panel. The STRIKE FINDER® can be slaved directly to an HSI or compass system with a standard stepper or synchro-output. The display is available with a New Ultra Bright LED Display with a single microprocessor-based circuit board that employs Digital Signal Processing, to ensure that the truest possible storm image is displayed. The microprocessor constantly monitors the performance of the entire system, from the Sensor to the Display for proper function.

Sensor
The maintenance-free Sensor is weather-sealed and mounts on the outside of the aircraft fuselage. STRIKE FINDER®, unlike any other system, uses Broad-band Digital Sampling. A greater bandwidth delivers vastly more information for improved signal fidelity and inherently superior noise rejection. This translates into a clearer definition of weather activity, without false or misleading indications

Revolutionary breakthrough for strike finder! Insight's stabilization module eliminates the need for slaved compass system.
Traditionally, weather mapping systems require connection to the aircraft's slaved compass system to maintain correct data orientation through heading changes. Recognizing that not all aircraft are equipped with a slaved compass system, Insight developed the Stabilization Module. The Stabilization Module provides data to the STRIKE FINDER, enabling displayed lightning strike information to rotate relative to heading changes. Operation of the Stabilization Module is automatic; no field configuration or calibrations are required.

The revolutionary stabilization module
Internal installation only.
Eliminates the need for a slaved compass system.
Is a totally self-contained sensor and data processor.
Contains no rotating gyro.
Gone forever are those periodic overhauls that are necessary with common rotating gyro systems.

Latest technology
The Stabilization Module contains all solid state components; there are no moving parts. New software algorithms process data from the enclosed sensors to determine heading change. Insight has developed this state-of-the-art stabilization system, by integrating both the motion sensor and the data processor into one miniature module. Benefits include reduction in cost, complexity and weight of a conventional system.

Factory option only
As a factory installed option, the Stabilization Module is now only installed within the STRIKE FINDER housing, deriving its power from and providing its signals directly to the STRIKE FINDER processor. Insight recommends the STRIKE FINDER System with the Factory Option, even for slave-compass equipped aircraft. This installation is simpler, faster and offers enhanced reliability by eliminating dependence on the maintenance-intensive rotating gyro.

Factory calibrated
Each Stabilization Module is individually factory calibrated and tested to insure proper operation under all conditions.


Click here for more product details.

Required Order Form

Reviews

Q&A

Q: Does the Strike Finder 2000L come with an STC and can it be installed by my mechanic?

We can only sell this Strike Finder to experimental aircraft as certified aircraft must go to an Insight dealer to have installed.

Q: Does it has a STC for Piper Aztec Pa-23-250?

Per the manufacturer: Piper is not currently listed on their STC. Please contact your A&P to discuss how to legally install this in your aircraft.
