Name: Bose 6 Pin Lemo Headset Install Connector Kit
Brand: Bose
SKU: 11-01846
Price: 155.95 CAD
Availability: InStock
Rating: 4.67 (24 reviews)

1-877-795-2278 | info@aircraftspruce.ca
Aircraft Spruce Canada
Brantford, ON Canada
Corona, CA | Peachtree City, GA
Chicago, IL | Wasilla, AK

SAME DAY SHIPPING ON ORDERS PLACED BY 2 PM | 877-795-2278

Photo may represent series and not specific product

Bose 6 Pin Lemo Headset Install Connector Kit

24 Reviews 15 Answered Questions

$155.95/Each

Add to Wishlist

Part# 11-01846
MFR Model# 323172-0010

JUMP TO

JUMP TO
Overview
Features
Documents
Reviews
Q&A
View in Catalog

Overview

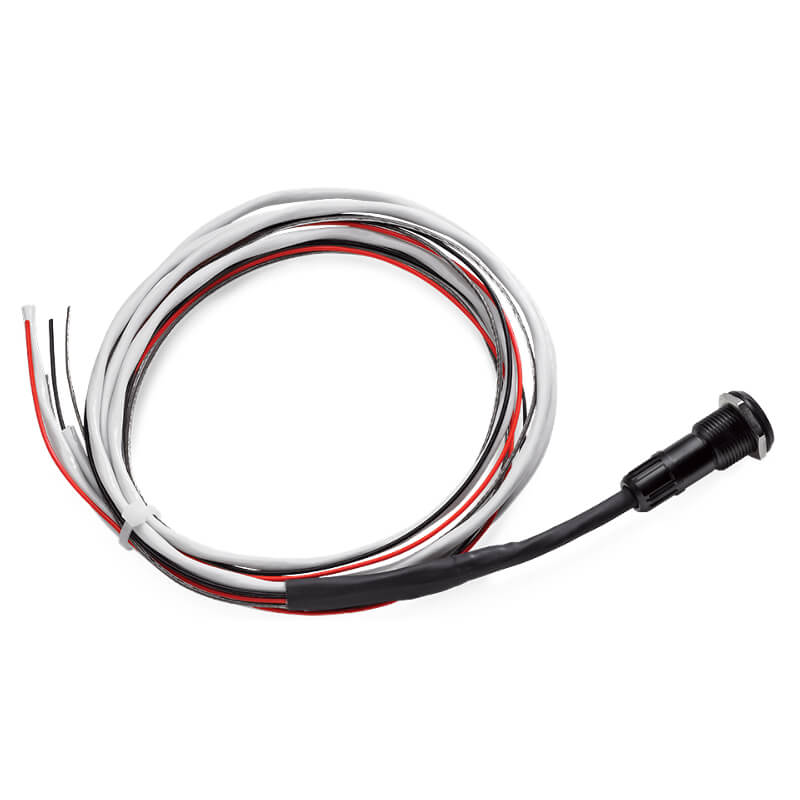

Custom panel connector and attached wiring harness for use with installed headsets. Semi-permanent installation provides aircraft power and audio to headset. Three-foot wiring harness allows for placement in locations throughout aircraft.

Note: The headset install kit is FAA approved part of the A20 TSO.

Features

Self-latching, precision-designed, quick-connector wiring harness for panel mounting in aircraft with 10-32 volt DC systems
Installation wire diagram and step-by-step instructions included
Panel connector must be mounted by qualified avionics technician

Documents

Installation Instructions

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Very satisfied

Charles B

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

February 11, 2025

good

Fernando S

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

February 8, 2025

good

Fernando S

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

February 8, 2025

still pending - but looks as expected

C. L

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

September 11, 2023

Victoria A

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

February 28, 2023

Worked fine. Replaced an older LEMO jack. The new one uses thicker wires, which is good because the old one had very thin fragile wire. And FYI, the new jack has slightly larger OD so youll need to enlarge your mounting hole if replacing an older one like I did.

Jeff B

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

November 16, 2022

good deal

Karl R

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

January 28, 2022

good product

Roy B

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

October 7, 2021

E. G

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

June 1, 2021

The order went fine

Anthony P

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

May 25, 2021

Product was delivered on time, and in excellent condition.

Henry B

March 17, 2021

excellent

Shai B

January 15, 2021

Just what we needed and the cost was the best I could find. Item as advertised and pictured.

Jonathan

August 21, 2020

works well for a kit from bose

Gene K

October 17, 2019

Nice harness with okay documentation. Color codes are potentially confusing on the shield wires, so study the diagram carefully before completing your connections. Note that there are two shielded pairs, and the shield wires are identical in appearance, so you need to ring them out to determine which is which.

John B

September 16, 2018

I replaced the GA jacks connected to the intercom in my aircraft with these. Headsets instantly power up and no more worries about leaking batteries. Straight forward installation. It would be nice to have a wiring diagram showing the installation without the GA jacks cluttering the view but, then again, it isnt hard to ignore the jacks either.

Jeff

June 9, 2018

Well worth the investment. The unit comes on as soon as there is power from the panel. Avionics tech said it was relatively easy to install into the panel. Installed two of them for the pilot/copilot.

Fig@ptd.net

November 20, 2016

Eliminates the need to carry all those extra AA batteries and gives you a clean look on your panel. I install these in all my aircraft and the aircraft I do major avionics work on. I always recommend it as an upgrade to existing panel installations. A good selling point on any sale.

Ps A

March 25, 2016

The best noise reducing with excellent speaker quality headset in the world.I fly a gyrocopter with a turbo charged engine inchs from my head and it is unbelievabley quite,you get what you pay for. best regards,eddie.....

Edward S

May 15, 2013

I like it once installed. In my application, I had to splice longer shielded wires. Not impossible but lots more work. Wiring was mid level complexity. Works great.

Final A

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

March 1, 2022

I wish the supplied wire pigtails were longer. I am very happy with the end result, Im using a Bose A20 headset.

James O

September 2, 2019

This is the headset connector that I needed for my Bose A20 headset. It came with instructions to install it into a system with existing GA panel jacks. I would like to see a diagram on how to install the connector alone, without GA jacks, as I plan to do.

Richard C

December 15, 2017

TBD

C. L

Verified Purchase

Bose Lemo 6 Pin Jack Install Kit

August 22, 2023

It works very well , but the construction is lacking. The plastic retainer that secures the pin connector is very fragile and breaks too easily.

Rusty

October 27, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this one jack/wire harness connect the headphone and microphone to the intercom? Can it be wired so my headset runs off the aircraft power instead of a battery?

This is the part you order if you want to put a LEMO panel power jack instead of installing mic/headphone jacks in the panel. You have to have a headset with the 6 pin LEMO plug for this to work without batteries in your headset.

Q: will this allow the use of the bose X as well as the new BoseA20?

This is for the installation of a 6 PIN Lemo power jack in the panel and is designed to work with any headset which is a 6 Pin Lemo Headset. The 6 PIN Lemo versions of the Bose X and A20 are supported.

Q: What diameter hole is required to mount the Bose A20 6 pin lemo connector install kit?

The connector requires a panel hole that is 12.5mm (0.49") wide, by 14.0mm (0.55") tall.

Q: How long are the harness wires? Is there a wiring diagram for this?

The wiring for the harness is three foot long. A step by step wiring diagram is included with the install connector kit.

Q: Can this me installed in addition to the GA connections or do the GA connections have to be removed? In other words what if you also wanted to keep the dual plug GA as well?

Yes, it is possible to have both jacks installed in the aircraft.

Q: If I install it to a Tango Headset, Will it charge the battery in the control unit?

No, this does not charge a Tango battery kit.

Q: Will it work with Lightspeed Zulu 3?

Yes this will work with all Lemo style headsets.

Q: What is the thread size and pitch for the nuts that hold it to the panel?

M14 x 1

Q: can this unit be soldered to the existing typical headset non-powered jacks... ? and be used either way? looking for a wire diagram

You can have both the Lemo and GA plugs but we believe the Lemo plug would need to be wired into the intercom separately. It would also need power.

Q: What is the LEMO part number of the 6-pin connector used on this cable?

You can use Bose A20 cable assembly 11-08734 or you can use an adapter to connect to the LEMO receptacle.
