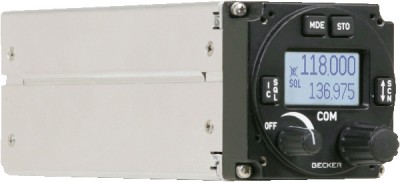

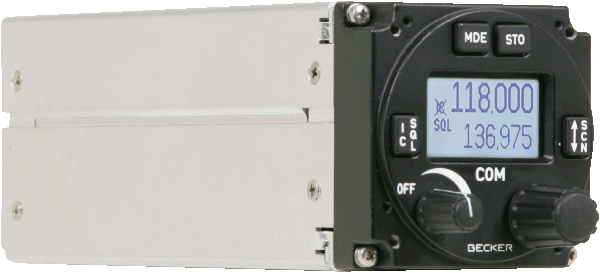

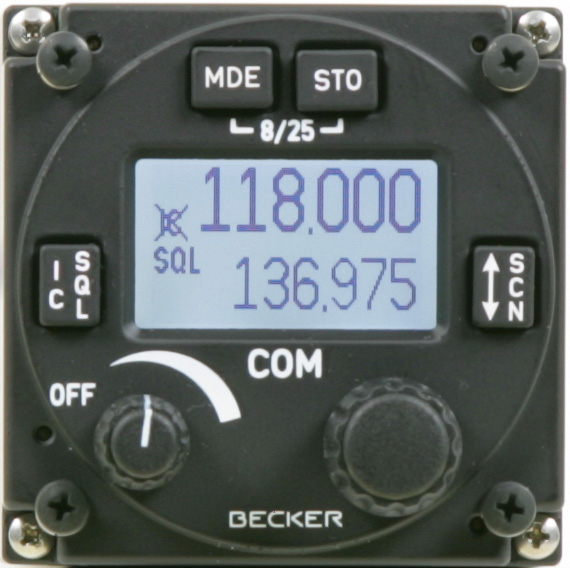

Becker AR 6201 Transceiver

10 Reviews 14 Answered Questions
Select Wattage:
6W10W
Quantity
Add to Wishlist

Overview

AR6201 series of square sized VHF transceivers from Becker are a family of affordable airborne radios optimized by their functionalities, state of the art technology, compact dimensions, and low weight for many different aircraft categories in general aviation, from smaller to larger aircraft.

The radios fit in any 2 1/4 inch cut out for easy installation and the different models are equipped with sunlight readable LC displays and high performance transmitters with 6 or 10 watts power output, continous power supply from 10.25 to 33 V DC, 8.33 kHz / 25 kHz channel spacing, sensitive receiver, VOX intercom and many other features.
  • 8.33 or 25 kHz
  • Supply voltage 9-33 V DC
  • 6 W or 10 W transmit power
  • VOX / INTERCOM
  • Scan (SCN) mode active/preset frequency
  • Tandem Operation
4 place VOX controlled intercom, separated PTT keys, tandem (parallel operation of 2 displays) capable connection with RCU620 1. The VHF transceiver also contains a channel memory function for automatically/manually frequency storage. The last 9 used (active) frequencies are always stored automatically. In addition a manual storage of up to 99 different frequencies is possible and a user defined text label for each stored frequency can be assigned.

Please note: a 24Vdc is required for the 10-watt version to produce this power rating.

Tech Data

Reviews

Submit a Review

Great service and good radio!

Carlos A Verified Purchase

Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
July 6, 2023

Classic and very effective transceiver. It is always a good choice. Thanks to Spruce for the efficent delivery

Alfredo B Verified Purchase

Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
April 5, 2023

Quality radio for a good price and is TSO spec

Jack C Verified Purchase

Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
March 7, 2023

Use for first time in a military airplane installation Super quality Very intuitive use Only check depth available because the small foot print push back in depth space Customer service was immediate

Total A Verified Purchase

Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
April 15, 2022

Super Transceiver! 48 h shipping from US to EU Super packing! Perfect seller!

Besnik L Verified Purchase

Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
November 12, 2021

Perfect upgrade from AR4201, in my case exchanging the radio was a case of unpluging and repluging the two radios. There are a few pins that are not backwards compatible on the connector - there is a upgrade manual from Becker if one should need to know.

Andreas K Verified Purchase

Becker Ar 6201 COMMRadio 2-1/4 With 25 And 8.33 Spacing
September 11, 2021

Great Radio, I would definitely recommend their products

J C
October 15, 2020

Fast and efficient service

Ian
March 5, 2020

Compact radio with great features and plenty of power at a fait price.

Bob H
September 7, 2019

This Becker radio was installed in my brand new Stemme S12G Motor glider and I hate it. Im used the the Trig TY91 radio which is so user friendly. The Becker requires extra steps to put in a frequency, and if there is turbulence it becomes very difficult. My transmissions are okay, but my reception is very poor. In part that may be because the antenna is in the tail. Never-the-less Im going back to Trig for my radio.

Jim
November 6, 2022

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: We purchased a Becker 4201 some time ago but now we need the support of 8.33 channel spacing. Is there a way to have the 4201 modified?

Unfortunately no, the Becker 6401 is the only solution to get 8.33 channel spacing. We do not offer a trade in program.

Q: Is the Becker AR 6204 harnesses included in the box?

No, the harness is not included. You will have to order 11-18178.

Q: Is the Becker AR 6201 Transceiver TSO'd?

Per the manual, the Becker AR 6201 Transceiver has ETSO-2C37e and 2C38e and TSO-C169a.

Q: Does the Becker AR 6201 radio have an auxiliary input for music that goes through the intercom?

Yes. An Aux input is available and will play through the internal intercom.

Q: I have the old Becker 4201, can I use the 4201 harness to connect the new 6201? Or would I need to buy a new one?

The harness is the same. You can use the 4201 harness with the 6201.

Q: Is the radio BECKER AR 6201 sold with an EASA form?

Yes, there is a certificate of conformance and EASA Form 1 included.

Q: Is there a nearest Com frequency capability for the AR 6201?

No, it does not have this feature.

Q: Does the Becker AR 6201 come with the DB25 Connector? So that I can build my own harness?

Yes, the radio comes with a connector kit. You can also order 11-18178 which is a premade harness for the radio.

Q: Is this capable of dual monitoring. i.e. Can it monitor both the active and standby freq at the same time?

According to the operating instructions on page 23 section 2.5.4 Reception on Preset Frequency in Scan Mode: If the preset frequency detects a signal while no signal is present on the active frequency, the transceiver automatically switches over to the preset frequency.

Q: Is AR 6201 6W or 10W?

Part # 11-08550 is 6W.
