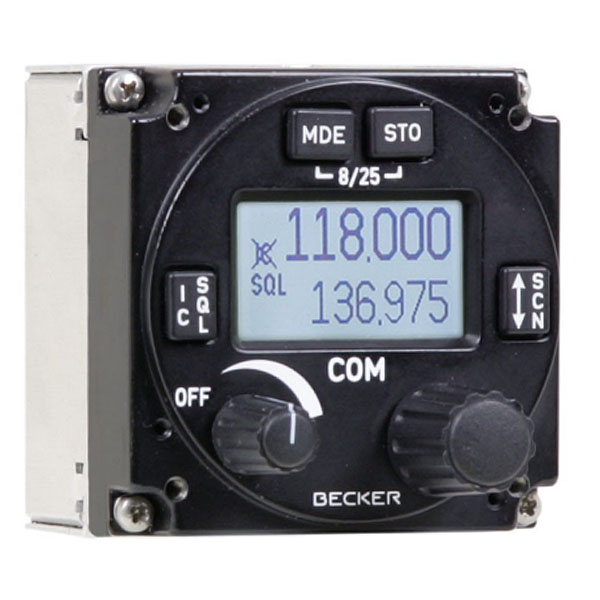

Becker Remote Control Unit, 8.33 KHZ / 25 Spacing, Blue White Blacklight Lc-display

$1500.00/Each
Quantity
Add to Wishlist
Part# 13-26551
MFR Model# RCU6201-(012)

Overview

The Becker RCU6201-12 remote control unit is a compact and reliable control interface for AR6201/AR6203 radios, ideal for tandem configurations and remote operation. Features include a dimmable backlit display, compatibility with 8.33/25 kHz channel spacing, and EASA certification.

Features

  • Remote control for AR6201 and AR6203 in tandem configurations
  • Separate control panel for RT6201
  • Easy-to-read display with dimmable backlight

Technical Specifications

Supply voltage: 10.25...33 V DC
Emergency supply voltage: 9.0...10.25 V DC
Output power: ≥ 10W@28V into 50 Ω
≥ 6W@12V into 50 Ω
Current consumption: ≤0.1 mA @ 12 V DC (Power OFF)
≤130mA @ 12 V DC
(Receiver standby)
< 2 A @ 12 V DC (Transmit)
Frequency range: 118.000 MHz to 136.990 MHz
Channel spacing: 8.33 / 25 kHz
Number of channels: 760 (25 kHz mode)
2280 (8.33 kHz mode)
Squelch: trigger level adjustable
Storage temp.: -55°C to +85°C
Operating temp.:
RT6201-(XXX) -40°C to +55°C, short time +70°C
RCU6201-(XXX) -20°C to +55°C, short time +70°C
Audio output Headphone: ≥300 mW @ 150 Ω
≥100 mW @ 600 Ω
Audio Auxiliary input: 1 V to 8 V (adjustable) into 600 Ω
Speaker: ≥4 W into 4 Ω
ETSO-2C37e and 2C38e
RTCA D-178B
Maximum altitude: 35.000 ft.

Benefits

Channel Spacing: 8.33/25 kHz (2280 channels)
Operating Voltage: 10 to 32 VDC
Dimensions (W x H x D): 61 x 61 x 65.9 mm
Installation Depth: 45 mm (behind the instrument panel, without connector)
Fits Circular Cutout: 58 mm
