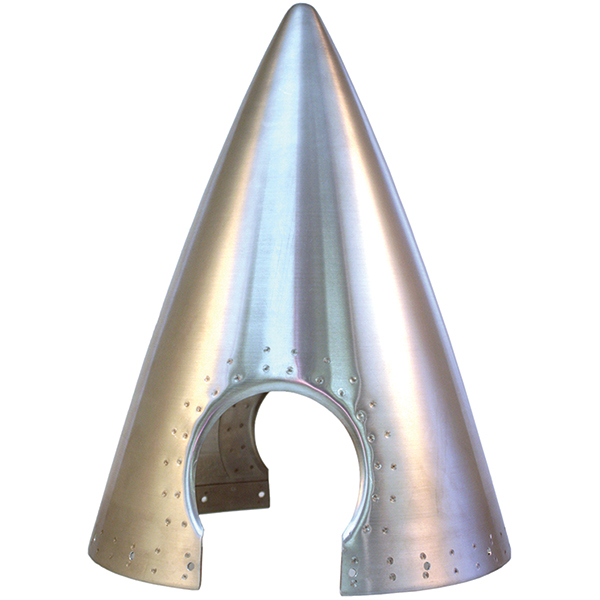

|These aluminum spinners and spinner support spacers are FAA approved for installation on several models of Cessna 182 series aircraft using McCauley two blade constant speed propellers. The Spinner Dome replaces original Cessna p/n 0752637K200, 0752637-5 and 0752637-11. The Spinner Spacer replaces original Cessna p/n 0752620-1 and 0752620-3. The Spinner Dome is approved on the Cessna 182H, 182J, 182K, 182L, 182M, 182N, 182P, 182Q and the 182R. The Spinner Support Spacer is approved on Cessna Models 180H, 180J, 180K, A185E, A185F, 182E, 182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N, 182P, 182Q, 182R, 210-5 (205), 210-5A (205A), 206, U206, P206 and the U206A.|
Yes, these holes are already pre-drilled into the spinner.
The diameter of the spinner from the base would be 12-1/2".
The dome includes 4 spacers. For additional approved spinner support spacers use P/N# 05-01902.
There is not a screw kit for the installation of the spinner. The required hardware the customer will need to purchase is, NAS221-8 qty: 14 and AN3-4A qty: 12.
The spinner is not polished, so you can polish or paint it if required.
