McFarlane Kit Piper Baggage Door Hardware - PBDL-KT-2

0 Reviews 0 Answered Questions
$380.00/Each
Quantity
Add to Wishlist
Part# 05-19620
MFR Model# PBDL-KT-2

Overview

Nosecone Baggage Door Latch/Lock Kits for Piper Aircraft

Save $$ Satisfying AD2009-13-06R1 Requirements
Improved FAA-PMA direct replacement lock and placard kits and convenient kits for all hardware required by Piper Service Bulletin 1194B to comply with AD2009-13-06R1. This AD requires a placard on the baggage door, lube and inspection of all door latching components every 100 hours and replacement of many of the components every 1000 hours. Alternative Method of Compliance (AMOC) #117A-16106-09
Lock Assembly Kit P/N MC88409-002:
  • Pre-assembled lock and offset cam helps prevent installation mistakes
  • Includes clear instructions
  • FAA-PMA direct replacement
Placard Kit P/N MC88451-002:
  • Kit contains both a black and white version to contrast with any paint scheme
  • FAA-PMA direct replacement

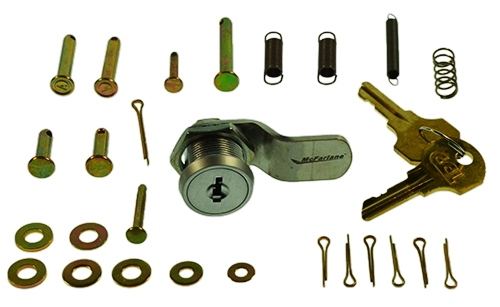

Complete kits with all 1000 hour mandatory replacement hardware contain P/N MC88409-002, standard hardware and Piper original springs.
Model Complete Hardware Kit
PA23-250, PA-E23-250
 		PBDL-KT-1
PA31, PA31-300, PA31-325
 		PBDL-KT-2
PA31-350 and T-1020
 		PBDL-KT-2
PA31P, PA31P-350
 		PBDL-KT-3
PA31T, PA31T1, PA31T2, PA31T3
 		PBDL-KT-3
PA42, PA42-720
 		PBDL-KT-3
PA42-1000
  		PBDL-KT-3 (Forward)
PBDL-KT-4 (Aft)
