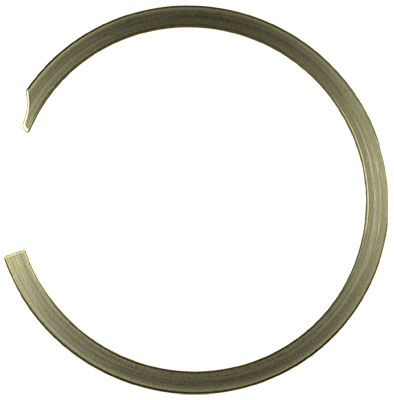

McFarlane Ring Snap - MC155-11900

$38.80/Each
Quantity
Add to Wishlist
Part# 05-16334
MFR Model# MC155-11900

Overview

Wheel Grease Seals and Kits


Finally a low cost alternative!
FAA-PMA approved for Cessna & Piper aircraft with Cleveland, and McCauley wheels.
  • Sold individually or as convenient kits
  • Each kit contains everything required to service one wheel: grease seal rings, plates, snap rings and felts; even screws and washers when required
  • We have done the research so you don’t have to!
  • Hard to find parts in stock
  • Save $$$
Future approvals will include Air Tractor, Beechcraft, Cirrus, Diamond, Mooney, and more!
  • Applicable for a wide range of aircraft
  • Direct replacement
  • Over 50% savings!
Reference Documents:


Grease Seal Rings and Plates:
P/NIDODThicknessFig
MC153-003001-33/642-1/20.034A
MC153-004001-45/642-5/81/32A
153-005001-3/42-3/4*5/32B
MC153-008001-53/642-23/641/32A
MC153-010002-1/162-3/4*1/8B
MC153-015002-1/162-5/813/64C
MC153-300131-11/162-39/641/32A
153-300142-1/162-5/811/64C
MC153-300151-17/322-35/641/32A
MC156-001001-3/43-22/321/8D
*OD measurement does not include mounting tabs
Grease Felt Seals:
IDODThickness Snap Rings:
IDODThickness
MC154-014001-3/42-5/81/8 MC155-001009/642-3/41/32
MC154-003001-5/82-5/81/8 MC155-002009/642-1/20.025
MC154-006001-3/42-13/32 1/8 MC155-118005/322-1/21/32
MC154-009002-1/82-7/161/8 MC155-119005/322-3/41/32
MC154-013002-1/82-1/23/16
MC154-300102-1/82-17/321/8
Dimensions are approximate and for identification only. Dimensions are in inches.
APS BlackSteel brake discs and linings, brake bleed valves, and wheel bearing cups and cones also available.
