ALLEN PREMIUM FUEL SHUT-OFF VALVES

From $334.00 to $4820.00
PN Model Handle Ports Config Positions Position
1
Position
2
Position
3
Position
4
Buy
05-29500
6S122No33 x 1/4-18 NPT4all
closed
A & Call closedB & C$334.00
Quantity
05-29515
6S1000No4MS33649-0641 & 42 & 43 & 4all closed$4820.00
Quantity
05-29525
6S1001No3MS33649-064C & AC, A, & BC & Ball closed$4181.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: Only part # 05-29500 includes the handle

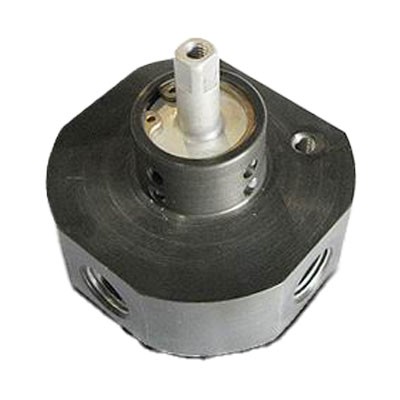

These premium fuel valves are recommended by Rutan Aircraft as the best fuel valves they have seen. They are a direct, bolt-in replacement for Weatherhead and other fuel valves. They turn smoothly and freely with a very positive spring loaded ball detent system which lets you feel the left right and off positions. Manufactured of anodized aluminum. Handle is not furnished with valve. Available in 3 models. Model GS122 valve originally recommended for Long-EZ. Not FAA approved. For experimental aircraft only.

Reviews

Q&A

Q: Does this valve, part number 05-29500, have positions for right, left, both, and off?

Per the position chart listed on-line, the 05-29500 does not have positions for right, left, both , & off. Part numbers 05-04451 & 05-02635 do offer these positions.

Q: Does part # 05-29500 have FAA-PMA?

No, it is not FAA approved.
