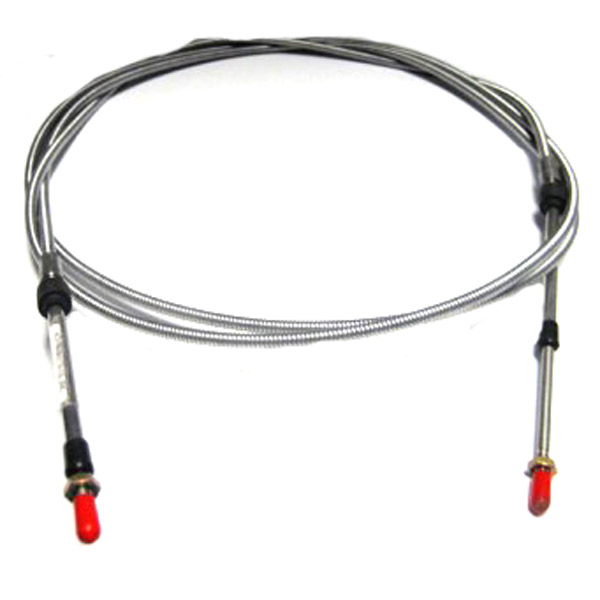

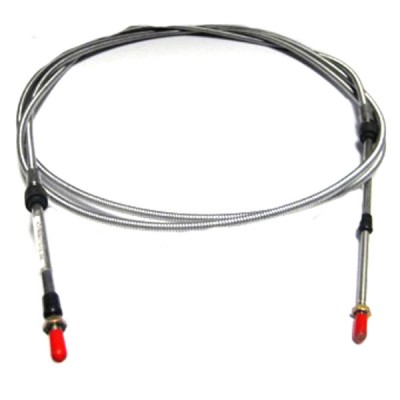

This control has 10-32 threaded ends with 8 degree swivel & 3-3/8" stroke on both ends. It has Teflon™ casing liner for use in high-temperature areas such as engine compartments, & .078" dia. stainless steel inner cable to minimize backlash. Stocked in the following lengths.
Made in USA
excellent service as usual the product is good and works well for me
Nice quality cable
I did not need a cable with a friction lock or a push button. So ordered this cable and then tried to find a knob for the end. Talked to your support people and concluded that this cable would not work for me.
The OD of the cable housing is approximately 1/4" at the center of the control.
Yes, custom length cables are available. The cable lengths on this A-920 cable are measured end to end (thread to thread). To order custom lengths, please call sales at 877-477-7823 during business hours to arrange the special order.
The A920 has 10-32 right hand threads, so the AN665-21R would be the correct end.
Per the supplier: The minimum radius bend is 6". The length is measured from the end of the threads on one side to the end of the threads on the other end. The stroke decreases approx. .360" with each 360* bend.
No, these cannot easily be modified to to a shorter length. If you like we can special order them to specific sizes.
No, this cable does not come with the bulkhead fittings. Take a look at the A-1550, this would come with the bulkhead fittings.
No, this cable is for experimental aircraft use only.
There is a notch at the end of cable close to where the swivel is, so you can use a housing clamp like p/n 10464 or slotted bracket mount p/n 10465. You can view each style on our web site.
Approximately 5-3/8 inches.
The A-920 requires one each of 05-02633 & 05-02634 on each end.
