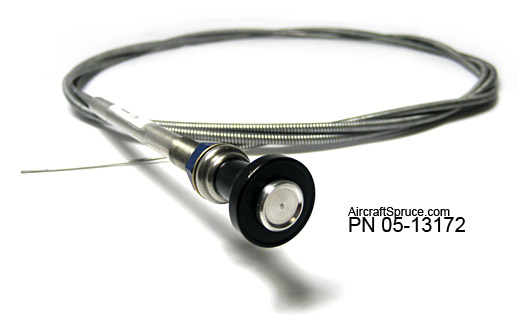

A-700 Button Lock Dash Controls

Select Color:
BlackRed
Select Length:
36-Inch48-Inch60-Inch72-Inch84-Inch96-Inch108-Inch120-Inch144-Inch
Quantity
Add to Wishlist

Overview

(7/16-20 UNF-2A Threads / Solid Wire End) Provides a 10-lb. locking force for light and medium service applications. Black or Red anodized aluminum knob with aluminum release button. Has .062" dia. stainless steel wire core in flexible metal casing. May be shortened as req. Max. travel 3-1/2". Order by Part No.

Made in USA

Reviews

Mike W Verified Purchase

A-700 CONTROL 72 BLACK KNOB

February 28, 2024

Nice cables

Mike W Verified Purchase

A-700 CONTROL 72" RED KNOB

February 27, 2024

Sam P Verified Purchase

A-700 CONTROL 120" BLACK KNOB

February 15, 2024

Arrived quick.

Dale D Verified Purchase

A-700 CONTROL 72 BLACK KNOB

April 14, 2023

Magaero L Verified Purchase

A-700 CONTROL 72" RED KNOB

September 22, 2022

Parowan A Verified Purchase

A-700 CONTROL 72 BLACK KNOB

April 30, 2022

Ordered for out Pitts S2-AE. Same part but good saving on Aviat price.

Richard T Verified Purchase

A-700 CONTROL 96" BLACK KNOB

October 26, 2021

Works as it should. Installed to control the air going thru my oil cooler. so I can adjust how much or how little air I want to go thru it. To help control the oil temp in the engine on cold days.

Peter C
February 17, 2021

Direct fit replacement for original cable, just needed cut to length. 172M

Bill
January 18, 2018

This is a nice quality pull cable control. It looks like a plastic knob but as the description says its anodized aluminum. Its perfect for my parking brake control cable.

Kurt E
November 27, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: what size ball bearing is used with A-700 button lock dash control?

It is an 1/8" diameter bearing, part number 05-02618.

Q: What is the outside diameter of the knob on this A-700 Button Lock Dash Control?

The knob diameter of this control is approximately 1".

Q: What is the outside diameter of the casing on the cable for this A-700 Button Lock Dash Control?

The OD of the cable housing is approximately 3/16".

Q: What is the outside diameter of the control knob is for the A-700 control cable?

The knob on the A-700 controls is approximately 1" diameter.

Q: When the knob is pushed all the way in, how far does the A-700 control protrude from the mounting surface?

Approximately 1.5 inches.

Q: Can the A-700 cable be cut down to any size, and can the wire be bent around a 3/16th bolt for a custom application?

Yes, they can be shortened and the wire should be fine wrapped around a 3/16 diameter.

Q: What is the panel mounting hole size for the A-700 control?

This requires a 7/16" hole in the panel for installation.

Q: Is there any low friction inner cable coating?

These have a polyethylene liner. These parts can be special ordered without an inner liner.

Q: What is the minimum length this can be shortened to?

You could cut all of the flexible portion off so that would just leave the 6" rigid end.

Q: Is the rigid portion on the button lock knob end the same length for all variants? Is there a version with a shorter rigid portion (shorter throw)?

Yes they are all the same length.
