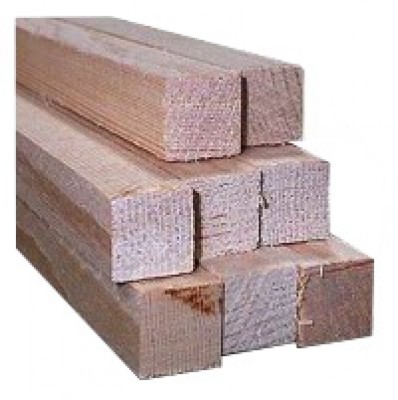

Spruce Capstrip

From $0.83 to $17.50
Thickness (In.) Width (In.) Part Number Price / Ft. Length Quantity
1/83/1602-18316$0.83
Quantity
1/81/402-1814$0.83
Quantity
1/85/1602-18516$0.91
Quantity
1/83/802-1838$0.98
Quantity
1/87/1602-18716$1.19
Quantity
1/81/202-1812$1.25
Quantity
1/85/802-1858$1.37
Quantity
1/83/402-1834$1.68
Quantity
1/87/802-1878$1.91
Quantity
1/8102-181$2.15
Quantity
1/81-1/402-18114$2.77
Quantity
1/81-1/202-18112$3.35
Quantity
1/81-3/402-18134$3.85
Quantity
1/8202-182$4.40
Quantity
1/82-1/402-18214$5.35
Quantity
1/82-1/202-18212$5.50
Quantity
3/163/1602-316316$0.83
Quantity
3/161/402-31614$0.83
Quantity
3/165/1602-316516$0.91
Quantity
3/163/802-31638$0.98
Quantity
3/167/1602-316716$1.19
Quantity
3/161/202-31612$1.25
Quantity
3/165/802-31658$1.37
Quantity
3/163/402-31634$1.68
Quantity
3/167/802-31678$1.91
Quantity
3/16102-3161$2.15
Quantity
3/161-1/402-316114$2.77
Quantity
3/161-1/202-316112$3.35
Quantity
3/161-3/402-316134$3.85
Quantity
3/16202-3162$4.40
Quantity
3/162-1/402-316214$5.35
Quantity
3/162-1/202-316212$5.50
Quantity
1/41/402-11300$0.83
Quantity
1/45/1602-14516$0.91
Quantity
1/43/802-1438$0.98
Quantity
1/47/1602-14716$1.19
Quantity
1/45/802-1458$1.38
Quantity
1/47/802-1478$1.91
Quantity
1/4102-141$2.15
Quantity
1/41/202-11700$1.25
Quantity
1/43/402-11900$1.68
Quantity
1/41-1/402-14114$2.77
Quantity
1/41-1/202-14112$3.35
Quantity
1/41-3/402-14134$3.85
Quantity
1/4202-142$4.40
Quantity
1/42-1/402-14214$5.35
Quantity
1/42-1/202-14212$5.50
Quantity
5/165/1602-516516$1.03
Quantity
5/163/802-51638$1.17
Quantity
5/167/1602-516716$1.68
Quantity
5/161/202-51612$1.91
Quantity
5/165/802-51658$2.03
Quantity
5/163/402-51634$2.15
Quantity
5/167/802-51678$2.27
Quantity
5/16102-5161$2.49
Quantity
5/161-1/402-516114$3.35
Quantity
5/161-1/202-516112$4.35
Quantity
5/161-3/402-516134$4.40
Quantity
5/16202-5162$5.35
Quantity
5/162-1/402-516214$5.85
Quantity
5/162-1/202-516212$6.70
Quantity
3/83/802-3838$1.72
Quantity
3/87/1602-38716$1.99
Quantity
3/81/202-3812$2.34
Quantity
3/85/802-3858$2.92
Quantity
3/83/402-3834$3.55
Quantity
3/87/802-3878$4.35
Quantity
3/8102-381$4.99
Quantity
3/81-1/402-38114$5.85
Quantity
3/81-1/202-38112$7.50
Quantity
3/81-3/402-38134$8.50
Quantity
3/8202-382$8.55
Quantity
3/82-1/402-38214$11.50
Quantity
3/82-1/202-38212$11.65
Quantity
1/21/202-12000$2.65
Quantity
1/25/802-1258$3.35
Quantity
1/23/402-14800$3.85
Quantity
1/27/802-1278$4.40
Quantity
1/2102-121$5.35
Quantity
1/21-1/402-12114$6.55
Quantity
1/21-1/202-12112$7.95
Quantity
1/21-3/402-12134$8.90
Quantity
1/2202-122$11.50
Quantity
1/22-1/402-12214$12.60
Quantity
1/22-1/202-12212$12.95
Quantity
5/85/802-5858$3.85
Quantity
5/83/402-5834$4.45
Quantity
5/87/802-5878$5.35
Quantity
5/8102-581$5.65
Quantity
5/81-1/402-58114$6.70
Quantity
5/81-1/202-58112$8.55
Quantity
5/81-3/402-58134$9.65
Quantity
5/8202-582$11.50
Quantity
5/82-1/402-58214$12.70
Quantity
5/82-1/202-58212$14.50
Quantity
3/43/402-3434$4.99
Quantity
3/47/802-3478$5.35
Quantity
3/4102-341$6.50
Quantity
3/41-1/402-34114$7.50
Quantity
3/41-1/202-34112$8.90
Quantity
3/41-3/402-34134$9.65
Quantity
3/4202-342$11.50
Quantity
3/42-1/402-34214$12.95
Quantity
3/42-1/202-34212$14.50
Quantity
7/87/802-7878$6.50
Quantity
7/8102-781$6.70
Quantity
7/81-1/402-78114$8.50
Quantity
7/81-1/202-78112$9.65
Quantity
7/81-3/402-78134$11.50
Quantity
7/8202-782$12.70
Quantity
7/82-1/402-78214$14.50
Quantity
7/82-1/202-78212$15.55
Quantity
1102-11$9.65
Quantity
11-1/402-1114$9.65
Quantity
11-1/202-1112$11.50
Quantity
11-3/402-1134$12.60
Quantity
1202-12$14.50
Quantity
12-1/402-1214$15.55
Quantity
12-1/202-12100$17.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Orders for spars, Spruce kits and capstrip can usually be shipped within three weeks after receipt of order. Spars wider than 6" must be milled from 8" specially selected stock which requires a long and indefinite lead time. Prices on request.

Spruce and tubing kits may be combined with plywood and other building supplies for a single truck delivery charge.

Metric Ordering Information
Spruce can be cut to metric sizes upon request only as special order, non cancelable and non refundable.
Using our current part numbers please select one size greater than desired and at check out in "Special Instructions" advise exact metric dimensions needed.

General Ordering Information
Aircraft spruce spars are available either S2S (surfaced 2 sides, top & bottom, with rough edges in 4" & 6" nominal width) or S4S (surfaced all 4 sides to thickness & width). Prices in table below are for S4S spars. If S2S is desired so builder can trim to exact width, specify S2S and use 4" or 6" width prices from table. Request quote on spar widths wider than 6". Spars for certificated aircraft such as Aeronca, Stearman, Taylorcraft and Piper are available and may be priced from the table. Since many of these early aircraft were “handmade”, the spars are often not uniform in size for a particular model. Therefore, the finished net dimensions should be specified when ordering replacement spars. Please price to nearest fraction.

When ordering either spars or capstrip, designate the thickness first, then the width and length.
Examples: 3/4"T x 4 1/4"W x 14’L spar; 1/4"T x 1/2"W x 5’L capstrip

For additional technical information refer to a complete reprint of spruce specification MIL-S 6073 and plywood specification MIL-P-6070. See Documents.

Faster Delivery can be assured if guidelines regarding minimum acceptable lengths are provided. Orders are often delayed awaiting delivery of lumber to the even footage specified whereas shipment could be made if the minimum usable lengths were indicated. Example: 3/4" nominal 6" x 12' (131-1/2" min.)

Please order by part number and also state exact thickness and width. Begin part number with “02”, then thickness & width. Example: 1/4"T x 3/8"W is P/N 02-1438.

Reference Chart

FINISHED CAPSTRIP, LONGERONS, STRINGERS
Price per Lineal Foot*

Thick
(Inches)
WIDTH (Inches)
3/16
1/4
5/16
3/8
7/16
1/2
5/8
3/4
1/8
02-18316
02-1814
02-18516
02-1838
02-18716
02-1812
02-1858
 02-1834
3/16
 02-316316
02-31614
 02-316516
02-31638
02-316716
02-31612
 02-31658
 02-31634
1/4
- --
 02-11300
02-14516
02-1438
02-14716
02-11700
02-1458
02-11900
5/16
- --
02-516516
02-51638
02-516716
02-51612
02-51658
02-51634
3/8
--
02-3838
02-38716
02-3812
02-3858
02-3834
1/2
--
02-12000
02-1258
02-14800
5/8
--
02-5858
02-5834
3/4
--
02-3434


Thick
(Inches)
WIDTH (Inches)
7/8 1 1-1/4 1-1/2 1-3/4 2 2-1/4 2-1/2
1/8 02-1878 02-181 02-18114 02-18112 02-18134 02-182 02-18214 02-18212
3/16 02-31678 02-3161 02-316114 02-316112 02-316134 02-3162 02-316214 02-316212
1/4 02-1478 02-141 02-14114 02-14112 02-14134 02-142 02-14214 02-14212
5/16 02-51678 02-5161 02-516114 02-516112 02-516134 02-5162 02-516214 02-516212
3/8 02-3878 02-381 02-38114 02-38112 02-38134 02-382 02-38214 02-38212
1/2 02-1278 02-121 02-12114 02-12112 02-12134 02-122 02-12214 02-12212
5/8 02-5878 02-581 02-58114 02-58112 02-58134 02-582 02-58214 02-58212
3/4 02-3478 02-341 02-34114 02-34112 02-34134 02-342 02-34214 02-34212
7/8 02-7878 02-781 02-78114 02-78112 02-78134 02-782 02-78214 02-78212
1 02-11 02-1114 02-1112 02-1134 02-12 02-1214 02-12100
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Excellent quality. No knots or imperfection no warping very well packaged nidamage

George A
March 1, 2021

I ordere the material and it was delivered in excellent condition in the timeframe noted in my invoice. The Spruce cap strips were secured neatly and the packaging prevented any damage. I have been using these for the Young Eagles Workshop Wing Rib Project. Our Eaa Chapter 501 plans on June or July to initiate these workshops and the spruce is of great quality. Thanks, Ron

Ronald H
February 16, 2021

Great perfect

Daniel I
January 11, 2021

Best spruce Ive used. Straight, grain matched, perfect condition - and perfectly wrapped with inside-out tape so the long pieces were held in place, but the adhesive side of the tape didnt come in contact with the wood. When I need wood, Ill come back here!!

Ed A
November 30, 2020

AA&S remains the most reliable and timely source of high-quality parts and materials Ive ever found. I look forward to enjoying many years of designing, building, and flying, secure in the knowledge that the materials keeping things aloft are top-notch -- and will outlast me. Thank you for being there for us through thick and thin. Stay safe, and be well.

Chuck P
November 23, 2020

Thanks to all of you that make it possible for me to purchase your products.

Ward
November 20, 2020

Material received was straight, accurate and with good grain.

Jim G
September 23, 2020

Light, straight, and straight grained.

James G
July 7, 2020

I use these in building 1/4 and 1/3 scale RCI aircraft to prevent splicing wing spars etc. and where structural strength is required, the lengths are adjustable in purchase so there never short, the cut sizing is always perfect. SUPER PRODUCT

Chris M
May 29, 2020

got here promptly.

Gerald M
May 28, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you stock long lengths of capstrip?

We mill it as necessary from lengths of 20+ feet. For complete stock information, please call 877-477-7823 during usual business hours or email us by clicking here.

Q: I'm ordering 400ft of capstrip. If I have it delivered, how long will each section be?

You will need to provide the cutting instructions upon checking out. For practicality and shipping purposes, we recommend cutting down to sections under 5 ft. UPS Ground will take sections up to 8 ft, but at that length shipping charges are more due to dimensional weight. Sections over 8 ft will need to ship via Truck and shipping charges will be significantly higher.

Q: Is capstrip suitable for making vintage aircraft wing ribs?

Yes, that is a common use for capstrip material.
