Numatx Hts-C3K Hydraulic Rivet Squeezer

Select System:
System Only - No YokeSystem with 1.5in YokeSystem with 3in YokeSystem with 4in Yoke
Quantity
Add to Wishlist

Overview

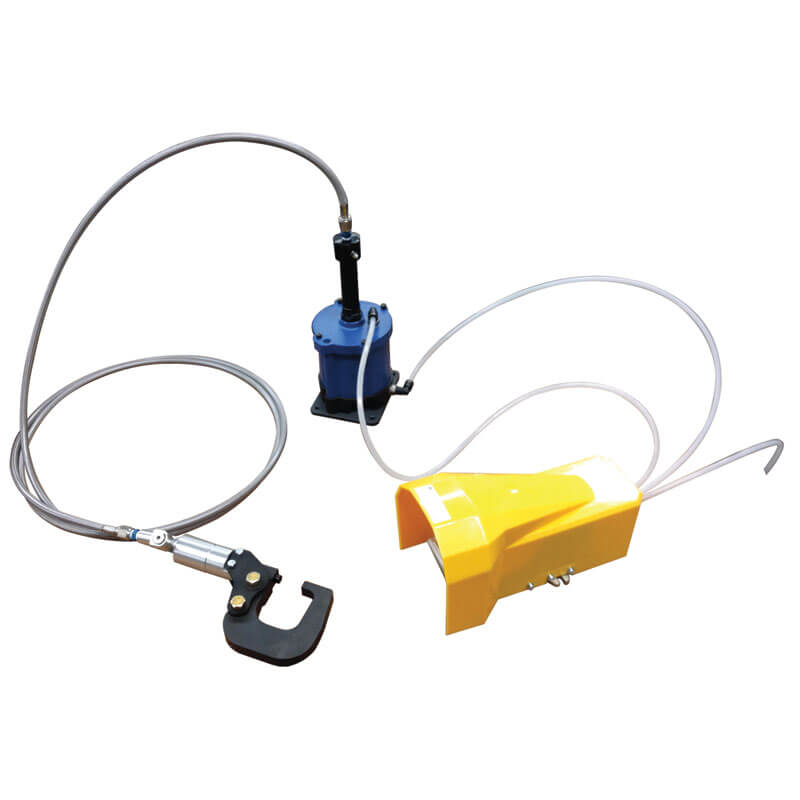

The Numatx HTS-C3K C-Squeezer System is a hydraulically operated hand held tool, designed to squeeze up to 1/8" diameter aircraft grade rivets (AD alloy). This unit is hydropneumatic operated (also known as pneudraulic). The system is comprised of an HTC-3 hand-held C-Squeezer unit and an HTI-10 Pressure Intensifier. The fully hydraulic C-Squeezer offers the advantages of decreased weight, smaller size, and constant force when compared to traditional pneumatic only squeezers. This reduces operator fatigue, allows for use in more confined areas, and improves control of the s2queezing action (feathering operation). The units are built from high-quality aircraft grade materials, with parts made on CNC machining centers and features held to close tolerances, for years of dependable operation.

Features

  • Makes 3,000 pounds of force
  • 3 lbs. lighter than traditional units
  • 3 inches shorter than traditional pneumatic units
  • Air powered intensifier - Hydraulic powered C-Squeezer
  • Constant force over entire .50" stroke
  • 2,980 Lbf @ 90 PSI air (3,800 PSI Hyd press)
  • Squeezes 1/8" Aluminum AD Rivets

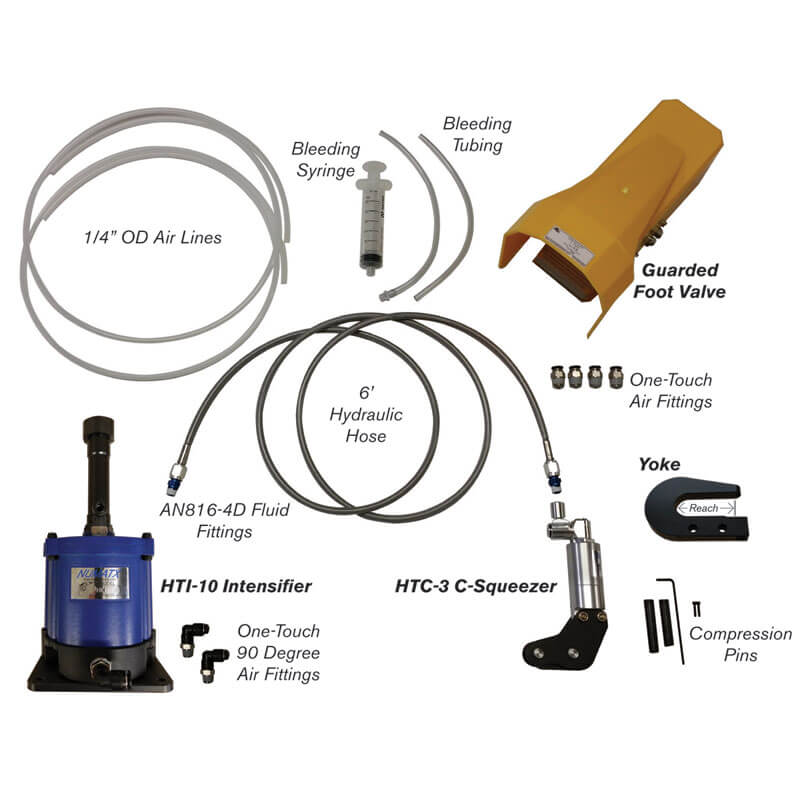

In The Box

  • HTC-3 C-Squeezer
  • Guarded Foot Valve
  • HTI-10 Intensifier
  • Bleeding Syringe
  • Tubing
  • Air Lines
  • Hydraulic Hose
  • Fittings
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Works great!

Robert K Verified Purchase

NUMATX HTC-3/HTI-10 3K SQUEEZER SYSTEM W/ 3" YOKE

June 16, 2021

I left a review that I loved this tool. Yes I still do. I had noticed somebody left a review and said that at 100 PSI it wouldnt smash a -4 rivet. Well, I can tell you for a fact that it does and with great gusto. Way beyond what is needed to give a good shop head. I have 175 in the shop but regulate to do jobs. Art

Art B
December 18, 2020

You gotta love this tool for sure. fast smooth. love it

Art B
December 18, 2020

Best tool I ever used!

Karsten W
April 10, 2018

Bought on the advice of a builder friend. Looks to be of excellent quality and US made. Doesnt come with ATF and doesnt say how much it needs. Havent squeezed any rivets yet. Instructions are a little obtuse and rendered in incredibly small print.

Jean-francois P Verified Purchase

NUMATX HTC-3/HTI-10 3K SQUEEZER SYSTEM W/ 3" YOKE

February 5, 2023

Comes with different hose than what is in all the pictures of product. It ships with thick rubber hose and not the stainless wrapped hose making it more cumbersome to use.

Tony F
January 18, 2021

At this time, Im NOT happy with the Numatx Hts-c3k. It will Not set a -4 rivet with 100 psi

Stephen S
June 5, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I use the yokes I already have? They are the standard 2 hole bolt on type.

The system is designed to use the yokes the manufacture offers, but the HTS-C3K unit can use industry standard CP-214 style yokes.

Q: Does this have quick-release shear pins for easy yoke changes?

This does have a quick release system for changing the yokes.

Q: Does it come with the thick rubber hydraulic hose or the hose in the pictures? im not interested in the thick rubber hose.

This comes with the hose as shown in the photo.

Q: Someone has already asked what hose comes with the kit. The question hasnt been answered, as the picture isnt totally clear. So does it come with a thick rubber hydraulic hose or a more manageable thinner hose.? ie braded stainless steel hose Regards Tom.

Per the vendor, these come with a black hydraulic hose now, they discontinued using the braided hose.
