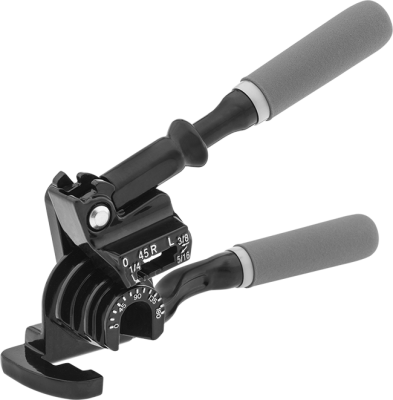

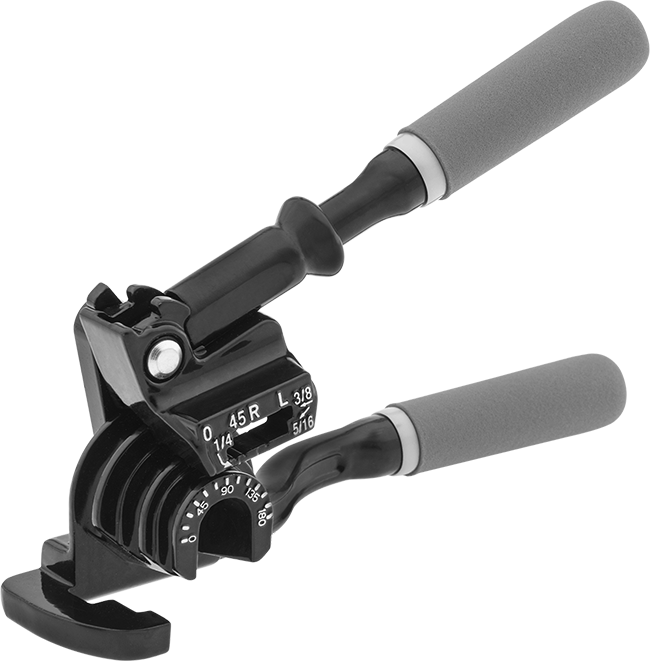

Multisize Tube Bender for Soft Metal for Use on Copper, Brass and Aluminum, 3/16 to 3/8 Tube OD.
1" Bend Radius—Bender with 1" bend radius—Copper must be annealed before bending. |
| For Use On | Aluminum, Brass, Copper |
|---|---|
| For Tube OD (Bend Radius) | 3/16" (9/16"), 1/4" (9/16"), 5/16" (11/16"), 3/8" (15/16") |
| Maximum Bending Angle | 180° |
| Angle Increments | 15°, 30°, 45°, 60°, 75°, 90°, 105°, 120°, 135°, 150°, 165°, 180° |
| Material | Aluminum |
| Mandrel Material | Aluminum |
| Length | 9 1/2" |
| Performance | Multisize |
| Power Source | Manual |
| Country of Origin | Taiwan |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 820559.1000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
