Cleveland 500 X 5 Main Wheels

From $0.14 to $2690.00

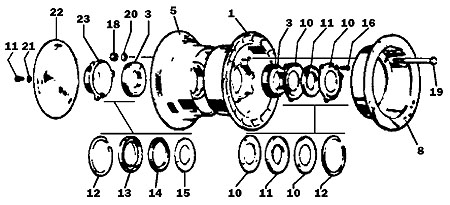

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

Fig. Part
No.
Cleveland
Part No.
Description 40-12 40-19 40-78 40-78A Price Buy
--
161-03100
161-03100
Inner Wheel Half Assy--------$1249.00
Quantity
--
161-04100
161-04100
Inner Wheel Half Assy----1--$2414.00
Quantity
5
162-00500
162-00500
Outer Wheel Half Assy1------$2206.00
Quantity
--
162-02800
162-02800
Outer Wheel Half Assy----1--$1154.00
Quantity
--
162-03900
162-03900
Outer Wheel Half Assy------1$2690.00
Quantity
*
217-00100
217-00100
Grommet----11$26.60
Quantity
*
101-07200
101-07200
"O" Ring1------$570.00
Quantity
8
164-00400
164-00400
Brake Disc Assy11----$668.00
Quantity
--
164-17
164-01700Brake Disc Assy----11$373.00
Quantity
*
214-00400
214-00400
Cone-Bearing2222$221.95
Quantity
19
AN4-31A
103-10800Bolt33----$1.35
Quantity
--
AN4-22A
103-10500Bolt----33$1.20
Quantity
20
AN960-416
095-10400Washer6633$0.14
Quantity
18
AN365-428A
094-10300Nut3333$0.29
Quantity
10
153-00800
153-00800
Ring-Grease Seal2244$43.99
Quantity
12
155-00200
155-00200
Ring-Snap2222$52.90
Quantity
11
154-00600
154-00600
Felt-Grease Seal1122$32.50
Quantity
23
158-00500
158-00500
Cap-Hub11----$1024.00
Quantity
17
102-25100
102-25100
Screw11----$60.75
Quantity
21
095-15400
095-15400
Washer-Lock11----$29.50
Quantity
22
157-00500
157-00500
Shield-Dust1------$364.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

CLEVELAND 500 X 5 MAIN WHEELS.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Tri-star C Verified Purchase

Washer, Flat AN960-416

September 21, 2024

Tri-star C Verified Purchase

MS21044N4 Elastic Stop Nut

September 21, 2024

Tri-star C Verified Purchase

Cleveland Brake Disc 164-17

September 21, 2024

Tony M Verified Purchase

Washer, Flat AN960-416

August 20, 2024

Michel C Verified Purchase

Washer, Flat AN960-416

August 15, 2024

T. E Verified Purchase

Washer, Flat AN960-416

August 7, 2024

Fast delivery

Michael J Verified Purchase

Washer, Flat AN960-416

July 23, 2024

Michael B Verified Purchase

Washer, Flat AN960-416

June 2, 2024

Kenneth L Verified Purchase

Washer, Flat AN960-416

May 15, 2024

Kenneth L Verified Purchase

MS21044N4 Elastic Stop Nut

May 15, 2024

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the 40-78 equivalent to the 40-78B? How many cup'bearing per wheel assy, 1 or 2?

There is no difference between 40-78 & 40-78B, they are application specific. The 40-78 are on Cessna and the 40-78B are on some American Champions, Pitts, etc. Looking at the parts breakdown for each assembly, they do have the same replacement parts. Both units will need qty 2 cup bearings per assembly. One for each half. The part number for the cup bearing is 214-00300.
