RC Allen 11D Series Vacuum Directional Gyro (Heading Bug + Autopilot)

From $2109.00 to $2568.00
Model No. Description Part No. Price Buy

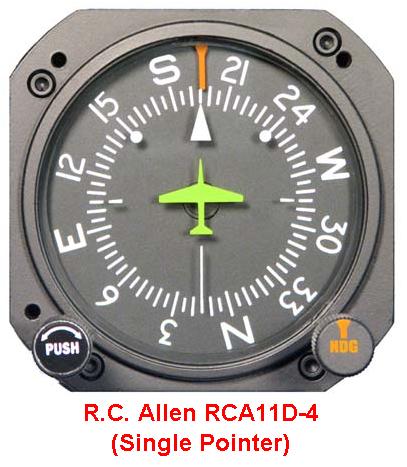

RCA11D-4Single Pointer, 400hz Autopilot with heading bug. Autopilot mating connector. Amphenol PN 126-223 or Winchester PN M5SH9C.
Autopilot pin out:
D:HDG SIG Input
B:HDG SIG Input Common
A:HDG SIG Output
E:HDG SIG Output Common
H: Spare
10-01117
$2568.00
Quantity

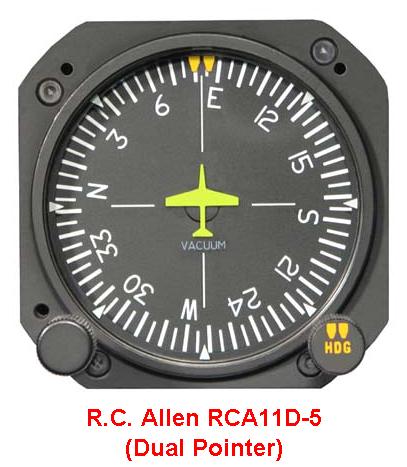

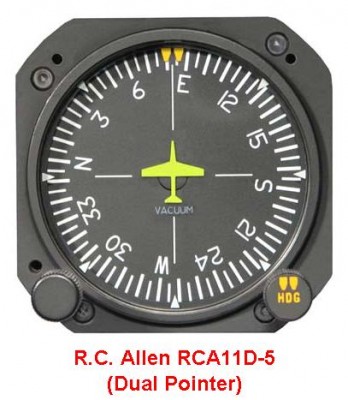

RCA11D-5Dual Pointer Autopilot with HEading Bug. Autopilot mating connector: Ampheonol PN 126-223 or Winchester PN M5SH9C
Autopilot pin out:
D: HDG SIG Input
B: HDG SIG Input Common
A: HDG SIG Output
E: HDG SIG Output Common
H: Spare
10-03430
$2568.00
Quantity
RCA11D-7With Heading bug only
10-02931
$2109.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

A 1/4"-18 NPTF nylon tube slip fitting is recommended for vacuum hose installation.

A 1/4"-27 NPTF nylon tube slip fitting is recommended for vacuum gage installation.

Meets of exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397.

DIMENSIONSLength: 7.4 "
Height: 3.4"
Width: 3.4"
Weight: 3.0 Pounds

Made in the USA
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Had to return because I ordered the wrong one and was able to return easily. AS&S was very helpful.

Leroy W Verified Purchase

RC ALLEN 11D-7 VACUUM DIRECTIONAL GYRO W/ HEADING BUG TSO

October 24, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: For RCA11D-7 part #10-2931, RC Allen directional gyro with heading bud, web description says meets or exceeds TSO standards, does than mean that it is TSOd?

Yes, this gauge is TSO approved.

Q: Is this RC Allen 11D directional gyro with single or double pointer?

The directional gyro part number 10-01117 has a single pointer.

Q: Need new DG and have STEC-50 AP, is this RC 11D a correct unit?

Yes, this will work with your STEC-50.
