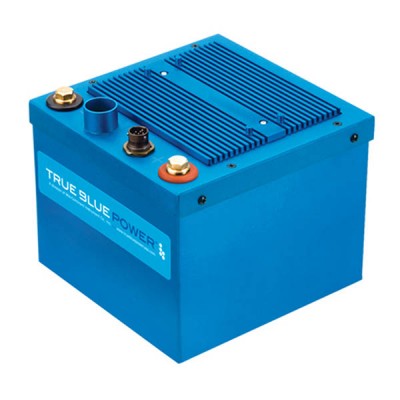

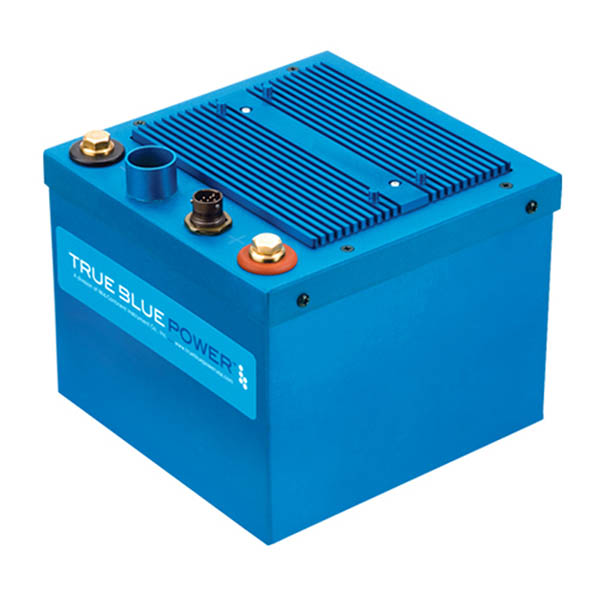

True Blue Power Lithium-Ion Battery 6430017

0 Reviews 0 Answered Questions
Select Version:

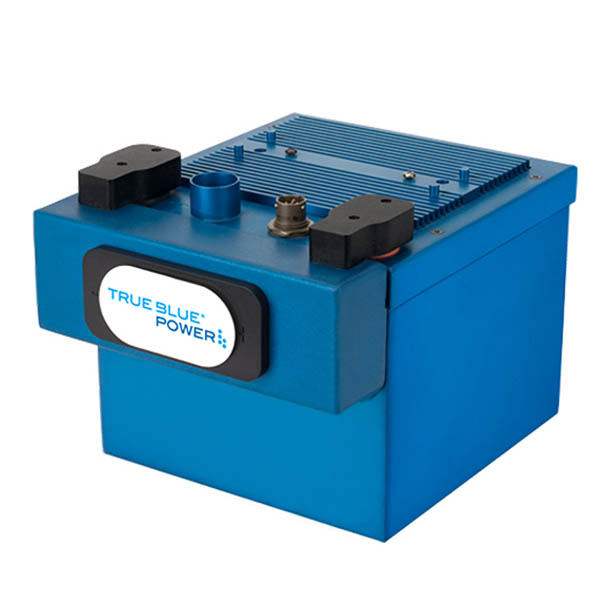

Quick Disconnect On/Off Feature On/Off Feature & Quick Disconnect
Quantity
Add to Wishlist

Overview

Ideal for the piston, turbine, and emergency power market, the TB17 Advanced Lithium-ion Battery starts the aircraft’s engine quickly and features superior energy density — NanoPhosphate® lithium-ion cells offer 3x the energy per kilogram, resulting in a battery that is 45% lighter than lead-acid or nickel-cadmium alternatives.

Features

  • 17 amp-hour battery nominal at 23°C/73.4°F
  • Weighs 16 lbs. — 45% lighter than lead-acid or nickel-cadmium alternatives
  • Advanced NanoPhosphate® lithium-ion cell chemistry — 3x the energy per kilogram when compared to lead-acid and nickel-cadmium cells
  • 7 engine starts in 7 minutes
  • 30 minutes (at 34 amps) for complete recharge when the battery is fully discharged
  • Automatic internal heater
  • Superior performance at extreme temperatures (-40°C/-40°F to 70°C/158°F)
  • Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
  • Communicates battery status to the cockpit
  • Higher voltage during engine start — Less wear, less maintenance and increased useful life
  • 2-year maintenance interval — 50 – 90% savings on maintenance costs
  • 8 years (average) useful life
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
  • FAA TSO certified

Specifications

  • Model Number: TB17
  • Part Numbers: 6430017-1, 6430017-2, 6430017-3, 6430017-4
  • Capacity: 17 amp-hour nominal at 23°C/73.4°F
  • Charge Voltage: 28 VDC nominal
  • Output Voltage: 26.4 VDC nominal
  • Output Current: 500A continuous, 840A max
  • Technology: Advanced NanoPhosphate® lithium-ion cell chemistry
  • Protection: Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting
  • Energy Density:
  • 64.4 Wh/kg
  • 87.1 Wh/liter
  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Weight: 16 lbs (7.26 kg)
  • Dimensions: 7.22” L x 7.37” W x 6.01” H
  • Configuration: 7P8S; 7 parallel cells x 8 series modules
  • Maintenance: 2-year maintenance interval; offers 50 – 90% savings on maintenance costs
  • Useful Life: 8 years (average)
  • Case: Anodized aluminum, blue
  • Certification:
  • FAA TSO-C179b (Class A-4B)
  • RTCA DO-311A
  • RTCA DO-160G
  • UNDOT/IATA
