General Electric GE 194 Miniature Lamp

$1.93/Each
Quantity
Add to Wishlist
Part# 14-02064
MFR Model# GE-194

Overview

Miniature T & TL type lamp shape with a T 3.25 Bulb.

General Characteristics

  • Miniature T & TL type lamp shape
  • T 3.25 Bulb
  • Wedge Base

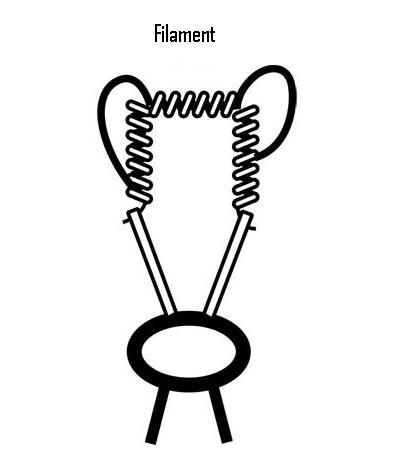

  • C-2F Filament
  • 4 Watts
  • 14 Voltage
  • 2,500 Hrs. rated life
  • Vacuum atmosphere
  • Primary Application: Instrument, Ignition Switch, General, License Plate, Map, Parking, Tail, Trunk Cargo Area

Photometric Characteristics

  • 25 initial lumens
  • 6 nominal initial lumens per watt
  • 2 means spherical candlepower (MSCP)

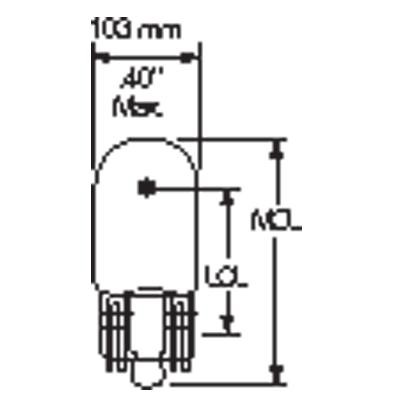

Dimensions

  • 1.0600 inches (26.9 mm) Maximum Overall Length (MOL)
  • 0.406 inches (10.3 mm) Bulb Diameter (DIA)
  • 0.560 (14.2 mm) Light Center Length
