Trig produces smart, affordable and future proof avionics. If you’re an
aircraft owner looking for an affordable ADS-B Out solution with
superior performance then Trig has the right ADS-B solution to get you

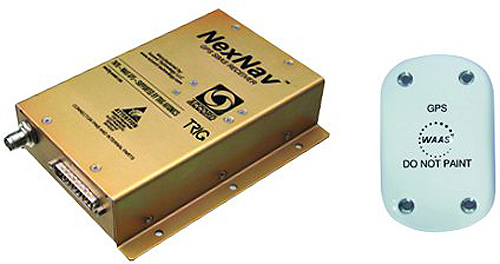

If you already own a suitable Trig transponder then our TN70 kit is the easiest way to meet the mandate. The TN70 includes a certified WAAS GPS and companion WAAS GPS antenna, designed to enhance your aircraft via a simple install that will deliver excellent ADS-B Out performance. If you need a Trig transponder to complete your TN70 ADS-B solution, then simply add one of our class leading products certified to FAA TSO C166b, the latest ADS-B standard.
A Trig transponder is the hub of an ADS-B Out system, using ‘extended squitter’ to communicate with ground stations and suitably equipped aircraft. It’s worth remembering; if you intend to use ADS-B In to access ADS-B ground services (TIS-B and FIS-B) then a compliant ADS-B Out must be installed. A Trig transponder is an ideal way to ensure your ADS-B Out is compliant.
Trig transponders use 1090ES technology - the ICAO ‘International Standard.’ A Trig system not only gives freedom to travel but it also has superior capabilities, 1090ES is required above 18,000 feet so it’s suitable for use in a wider range of aircraft types than UAT. TN70 – WAAS GPS and WAAS antenna

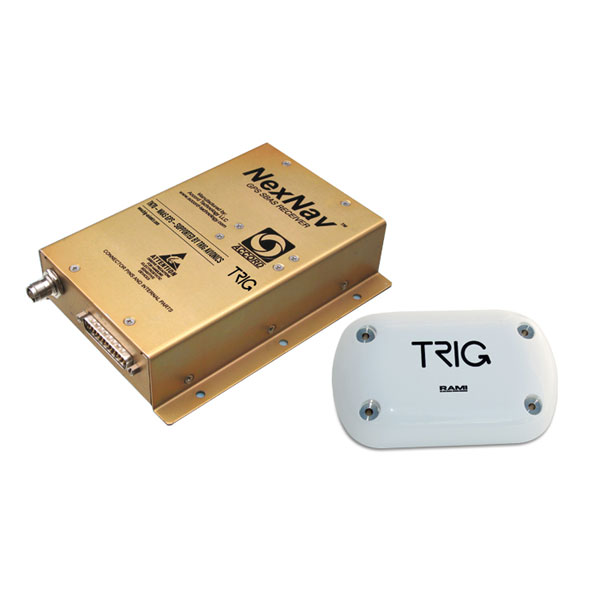

A compliant ADS-B Out demands a certified position source that is totally dependable. The TN70 takes no panel space, it is fitted discretely as a stand-alone GPS so you can retain and use your existing panel equipment. The TN70 is paired with a high quality certified WAAS antenna optimised for our complete solution.
Beta 1 Receiver
DO-178B level C
DO-254 level C
Typical consumption @14 V:
|Typical: 0.2A |
Nominal transmitter power:
|-55°C to +70°C|
|No fan required|
H x W x L - inches
|1.6” x 4.13” x 6.5”|
Installed recently and working well. Flight tested OK and qualified for FAA rebate. With my aircraft (Factory Great Lakes biplane), the Avionics shop was able to put the antenna inside the fuselage where it doesnt show.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The Trig TN70 ADS-B system is designed to work with ADS-B capable Mode-S transponders.
No it cannot, as the GPS antenna for the TN 70 is certifed with the system.
Yes, the Trig TN-70 will only work with mode S transponders. We recommend the Trig TT21 (11-07999) to be used with the TN-70.
As of 7/6/15, the TN-70 is only compatible with Trig transponders. Please see part number 11-07997 for the TT31.
No, the software in the KT-74 is not made by Trig and is not compatible with the TN-70.
It only has two RS-232 ports, we do not see any NMEA 2400 output in the manual.
A WAAS GPS antenna is included as well as a mating connector. The unit is flange mounted so no tray is required. You will need to supply the coax cable assembly between the receiver and antenna.
Yes, it does.
It is a custom wiring harness for your specific installation. You specify which units you need interconnected and the distances and we prepare all the necessary wiring for you.
The Trig TN70 ADS-B system is designed to work with Trig products, we have no data to support that this will work with Garmin transponders.
