Bonehead Aries Flight Helmet - Active
MFR Model# ARA
Overview
|

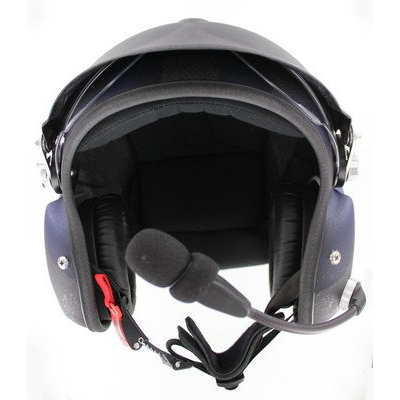

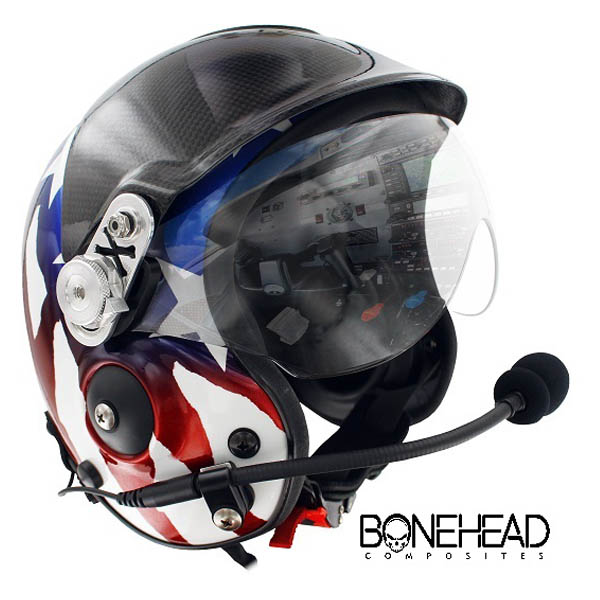

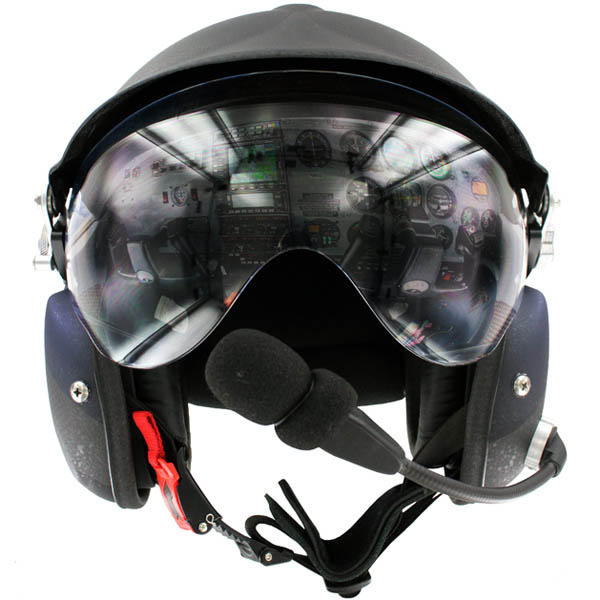

The Aries features an integrated visor, which opens and closes into the shell of the helmet with a single-handed turn of the knob. The Aries addresses the need for a low-profile communication helmet tailored to aircraft with limited headroom. Constructed of vacuum molded carbon fiber and fiberglass, this lite weight helmet packs a punch when it comes to completing the mission. The shell features a quick release chin strap buckle and adjustable strap, nape strap, fastened ABS adjustable ear cups for sound attenuation, and gel ear seals for added comfort. A Velcro-fastened adjustable liner completes the fitting. The Aries comes standard with the communication package, and can be customized to each specific pilot's needs, including:
The Aries comes standard with the communication package that includes a choice of two-plug general aviation panel cord or single-plug helicopter cord with an emergency disconnect at the helmet via a Nexus U-92 A/U plug. The microphone, which can be mounted on either the right or left side, is an electret flex boom with foam wind muff. Hearing options include the standard 300 ohm ear cup mounted speakers and the optional military grade ear buds (CEP). Sound attenuation is noticeably better using the ear bud option, so this is something to consider before ordering. Perfect for aircraft such as:
|
Size Chart
- Small: 21.75-22.25"
- Medium: 22.25-22.75"
- Large: 22.75-23.25"
- Extra Large: 23.25-23.75"
- XXL: 23.75-24.00"
Specifications
General — Battery power supply: 3V, two AA batteries. Panel aircraft 8-40 VDCHeadphone — Transducer: 40mm moving coil. Frequency Response: 20 Hz-20 kHz. Nominal impedance @1 kHz: OFF - Mono: 200 ohms, ON - Mono: 280 ohms. OFF - Stereo: 400 ohms, ON - Stereo: 560 ohms
ANR — Maximum SPL: Greater than 125 dB at 100 Hz
Color Chart
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Approx 2.3 lbs.
The ANR is the Heasets Inc ANR. The CEPs are small ear buds that plug into the helmet. When the CEPs are plugged in you get audio through the ear buds and the speakers in the ear cups at the same time.
