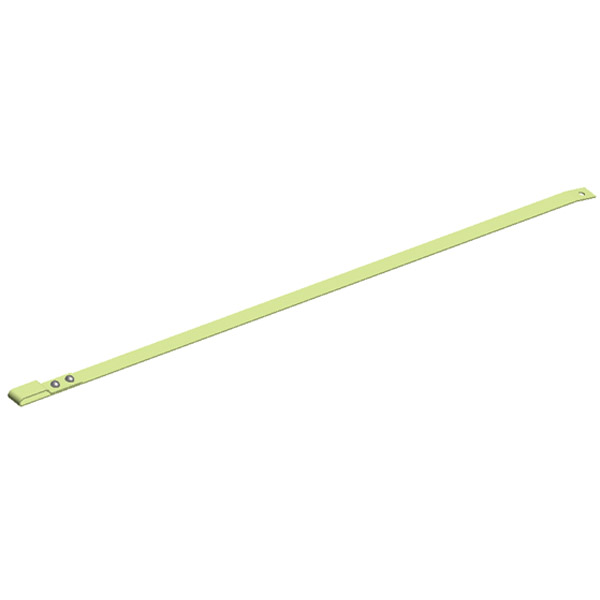

McFarlane Cessna Drawbar Assembly MC0413406-8

0 Reviews 0 Answered Questions
$411.00/Each
Quantity
Add to Wishlist
Part# 05-32445
MFR Model# MC0413406-8

Overview

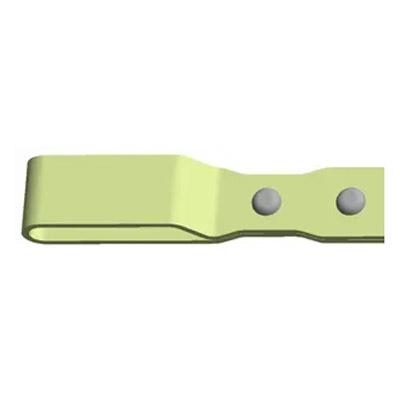

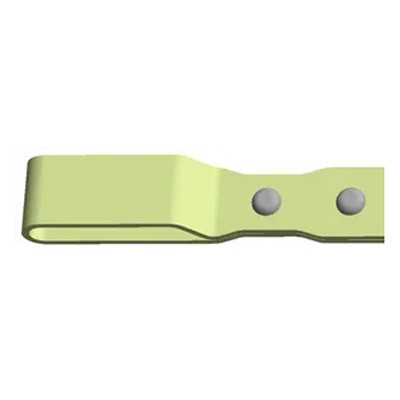

The McFarlane drawbar was uniquely designed to combat the common failure points of the OEM replacement, including broken loop ends or cracking. Both failures result in an inoperable door handle, requiring replacement of your drawbar. Our design incorporates several improvements, including its material, shape, and added washer. The OEM drawbar is made of aluminum, compared to our stronger stainless steel material that is less prone to cracking or failure, resulting in a longer lifespan. We also redesigned the shape of our drawbar that prevents popping on the door handle during operation, which creates a wear spot and bends the drawbar (resulting in failure). Lastly, we added a unique spacer for an improved fit and less noise during use!

Features

  • FAA-PMA approved for many Cessna 150/152 aircraft
  • Stronger, lasts longer, and less prone to cracking or failure
  • Made of stainless steel
  • Improved design to prevent door handle failure

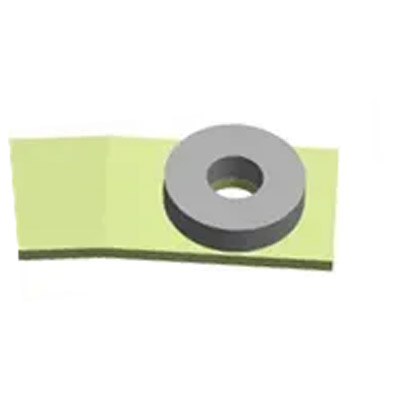

  • Unique spacer washer for improved fit and function
  • Both LH and RH doors use the same drawbar part number, P/N MC0413406-8.

Eligible Aircraft

Make Series Model Start S/N End S/N Quantity Per Aircraft Location Eligibility Chart
Cessna 150 150F 15061533 15064532 2 Cabin Door LH & RH 2334
Cessna 150 150G 15064533 15067198 2 Cabin Door LH & RH 2334
Cessna 150 150H 15067199 15069308 2 Cabin Door LH & RH 2334
Cessna 150 150J 15069309 15071128 2 Cabin Door LH & RH 2334
Cessna 150 150K 15071129 15072003 2 Cabin Door LH & RH 2334
Cessna 150 150L 15072004 15075781 2 Cabin Door LH & RH 2334
Cessna 150 150M 15075782 15079405 2 Cabin Door LH & RH 2334
Cessna 150 A150K A1500001 A1500226 2 Cabin Door LH & RH 2334
Cessna 150 A150L A1500227 A1500523 2 Cabin Door LH & RH 2334
Cessna 150 A150M A1500524 A1500734 2 Cabin Door LH & RH 2334
Cessna 150 F150F F150-0001 F150-0067 2 Cabin Door LH & RH 2334
Cessna 150 F150G F150-0068 F150-0219 2 Cabin Door LH & RH 2334
Cessna 150 F150H F150-0220 F150-0389 2 Cabin Door LH & RH 2334
Cessna 150 F150J F150-0390 F150-0529 2 Cabin Door LH & RH 2334
Cessna 150 F150K F15000530 F15000658 2 Cabin Door LH & RH 2334
Cessna 150 F150L F15000659 F15001143 2 Cabin Door LH & RH 2334
Cessna 150 F150M F15001144 F15001428 2 Cabin Door LH & RH 2334
Cessna 150 FA150K FA1500001 FA1500081 2 Cabin Door LH & RH 2334
Cessna 150 FA150L FA1500082 FA1500120 2 Cabin Door LH & RH 2334
Cessna 150 FA150L (when equipped w/FKA150-2311 & FKA150-2316) FA1500121 FA1500261 2 Cabin Door LH & RH 2334
Cessna 150 FA150M (when equipped w/FKA150-2311 & FKA150-2316) FA1500262 FA1500336 2 Cabin Door LH & RH 2334
Cessna 152 152 15279406 15286033 2 Cabin Door LH & RH 2334
Cessna 152 A152 A1520735 A1521049 2 Cabin Door LH & RH 2334
Cessna 152 F152 F15201429 F15201980 1 Cabin Door LH & RH 2334
Cessna 152 FA152 FA1520337 FA1520425 1 Cabin Door LH & RH 2334
