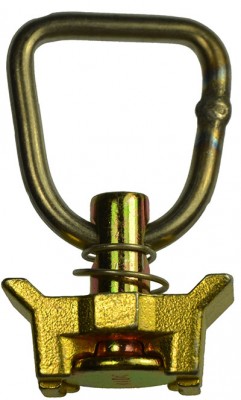

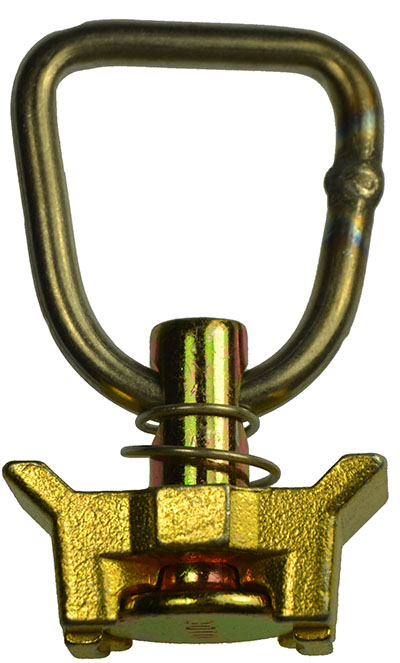

Ancra International Fitting Brownline Single Stud - 40340-21

$54.80/Each
Quantity
Add to Wishlist
Part# 05-18199
MFR Model# 40340-21

Overview

  • Use with Brownline style track (McFarlane P/N series 6656) or other MS33601 compatible track
    • Sometimes called L-track
  • Perfect for net or strap restraint applications
  • Spring loaded fitting snaps securely into place and can be easily moved to different positions.


P/NDescriptionFigureA
B
C
D
E
F
0 deg Vertical Working Load Limit lbs.90 deg Horizontal Pull Angle Working Load Limit lbs.
32401Single Stud Fitting with Ring1
1.99"0.93"1.18"0.19"0.63"1.23"1333
1000
40340-20 *Single Stud Fitting with Ring1
1.87"0.87"1.12"0.19"0.71"1.43"1000
500
40340-21 **Single Stud Fitting with D-Ring2
2.00"1.09" 0.19"0.71"1.43"1000
500
47981-10Double Stud Fitting with Round Ring3
1.75"2.32"2.34"0.31"0.76" 10000
5000
47981-11Double Stud Fitting with Twisted Ring4
1.56"2.32"3.76"0.27"0.76" 5000
5000
32505 ***Triple Stud Fitting without Ring5
1.12"0.90"2.60"   2167
1670
32507 ***Triple Stud Fitting with Pear Shaped Ring6
1.12"0.90"1.16"0.25"4.90" 2000
1670
* NSN Number 1670-01-243-8877
** NSN Number 1670-01-261-0567
*** 60 deg Pull angle working load limit = 2000 lbs.

P/N 32401

P/N 40340-20

P/N 40340-21

P/N 47981-10

P/N
47981-11

P/N
32505

P/N
32507
