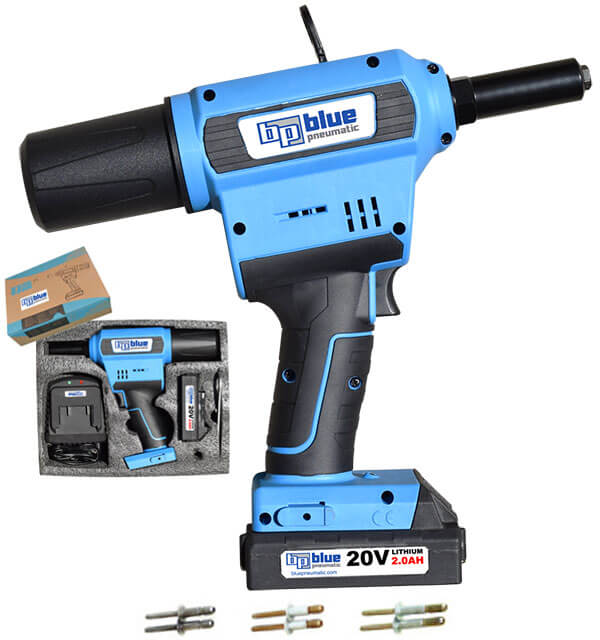

Blue Pneumatic Cordless Riveter BP-20CR
MFR Model# BP-20CR
Overview
|
Blue Pneumatic has done it again. More Power, Less Weight, More Productivity! No Air hoses or compressors to hassle with. The Blue Pneumatic BP-20CR 1/4" Blind Rivet Tool is an ultra-fast cordless rivet tool. It eliminates the need for air hoses and compressors and is built to last. The brushless motor makes this tool very durable, lasting many times longer than other rivet tools. With an industry leading 27mm (1 1/16 in) stroke, it pulls rivets in just one stroke. This tool is ideal for production environments as it has a sturdy outer composite body and requires just about no maintenance. BP-20CR’s Brushless Motor delivers 4,496 lbs. (20kN) of pulling force for high-strength Structural blind rivets in all materials. This rivet tool pulls rivets ranging from 1/8 up to 1/4" in all /materials. |
Features
- Eliminates compressors and air hoses providing lower cost of ownership, greater productivity, more portability, and more safety.
- Installs 1/8 in. (3.2 mm). 5/32 in. (4 mm), 3/16 in. (4.8 mm), 1/4 in. (6.4 mm) in aluminum, steel, and stainless steel rivets.
- Battery charges in 60 minutes.
- Brushless Motor delivers 4,496 lbs. (20kN) of pulling force for high strength (Structural) blind rivets in all materials.
- 1 1/16 in.(27mm) stroke to set rivets in one stoke.
- Weighs only 4.16 lbs. including the 20V battery.
- Led work light to illuminate work area.
- Kit includes: 1) BP-20CR 1/4 in. Rivet Tool, 1) 100-240V charger, 1) 20V battery,4) Nozzles (Nose tips), 1) Wrench set,1) Mandrel collector bottle.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Installs 1/8 in. (3.2 mm). 5/32 in. (4 mm), 3/16 in. (4.8 mm), 1/4 in. (6.4 mm) in aluminum, steel, and stainless steel pull type rivets.
