Home / Pilot Supplies / CO Detectors /Radiant CO-USB-UP Carbon Monoxide Detector Alarm
Main Image

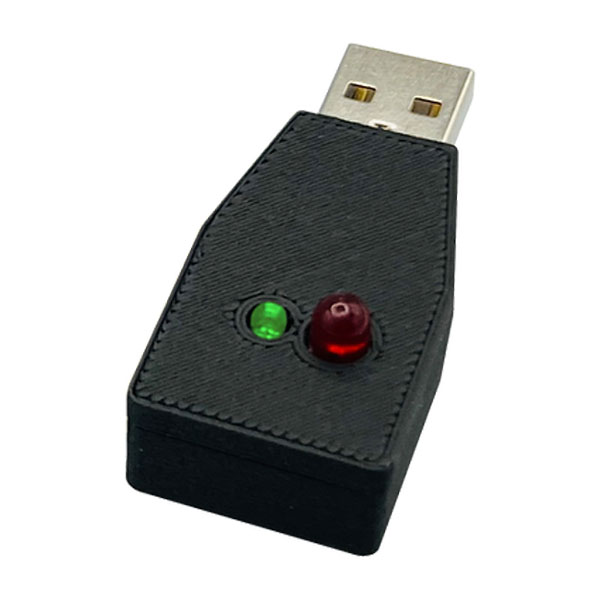

Radiant CO-USB-UP Carbon Monoxide Detector Alarm

0 Reviews 0 Answered Questions
$54.75/Each
Quantity
Add to Wishlist
Part# 10-07781
MFR Model# CO-USB-UP

Overview

We now offer the CO-USB Carbon Monoxide Alarm that flips the orientation of the LEDs so that panel installations can be better accommodated, while retaining the features of the CO-USB Original. However, it does not have the digital output port.

CO-USB-UP provides a brilliant and reliable indication of CO poisoning. Per FAA guidelines, it flashes bright RED at 41 PPM. For reference, see Carbon Monoxide, a Deadly Menace (faa.gov).

It features a breakthrough electrochemical sensor that provides excellent anti-interference from other gases.

It's part of our commitment to prioritize affordability, ease of use, simplicity, and reliability—all crucial features for enhancing safety in aviation

Features

  • Plugs into any USB port for power
  • Low power consumption (30 milliamperes)
  • 3 year warranty
  • Excellent anti-interference from other gases
  • Temperature compensation; works across -10 to 40C
  • Digital output via serial data (0 to 1000ppm results @ 9600 baud) (via 5 pin port)
  • 3 minute warmup to first accurate result
  • 30 second response to first indication
  • 30 second recovery after removal of CO gas
  • Red LED illuminates at 41PPM (any level may be set for OEM integration via 5 pin port)
  • Digital Alarm signal output; provides a logic “1” (5 volts) whenever the red LED is blinking. (via 5 pin port)
  • May be powered from any +5 volt supply through the 5 pin port.

Specifications

  • Plugs into any USB port for power / charging
  • Low power consumption (30 milliamperes)
  • 3 year warranty
  • Excellent anti-interference from other gases
  • Temperature compensation; works across -10 to 40C
  • 3 minute warmup to first accurate result
  • 30 second response to first indication
  • 90 second recovery after removal of CO gas
  • Red LED flashes at 41PPM
  • Digital output via serial data (0 to 1000ppm results @ 9600 baud) (via 5 pin port) (CO-USB Original only)
  • Digital Alarm signal output; provides a logic “1” (5 volts) whenever the red LED is flashing (via 5 pin port) (CO-USB Original only)
  • 8 hour battery life (CO-USB-Battery only)
  • LEDs face up (CO-USB-UP only)
  • 85 db alarm (CO-USB-Battery only)
