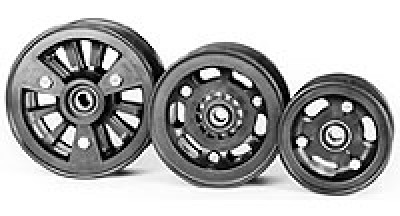

Azusalite wheels are made from engineering grade Nylon. Combines high tensile and compressive strengths and good impact resistance. Excellent for many homebuilt and ultralight aircraft applications since they weigh 60-70% less than aluminum wheels. Azusalite wheels are offered in 4", 5" and 6" models. Replacement parts and unlisted accessories available on request.
06-02500: AZUSALITE 5" Wheel Used as the main wheels on the Mohawk ultralight, this 5" wheel features 5/8" I.D. sealed ball bearings. Uses 4.10 / 3.50 x 5 or 5.00 x 5 tire & tube.
06-02600: AZUSALITE 4" Wheel A 4 inch Azusalite wheel featuring 5/8" sealed ball bearings. Uses a 4.10 / 3.50 x 4 tire and tube.
06-02700: AZUSALITE 6" Wheel - A 6" Azusalite wheel; comes complete w/ 5/8" sealed ball bearings.Uses 4.10 / 3.50-6 or a 6.00-6 tire & tube.
Very light weight.
AZUSALITE MODEL #3 4" WHEEL
AZUSALITE MODEL #3 4" WHEEL
These nylon wheels have been serving well. Recently replaced the nose wheel rim with the 5# nylon rim and saved 13+ ounces. Good value.
Good light weight wheel but can’t take a lot of side load
Light, tough, precise and capable of necessary loads. Im very pleased with the wheel. Since no brake is available, Im designing a disk and caliper to use with the wheel. This should favorable affect net weight by about 1.5 to 2.0 lbs. Im excited to complete the assembly.
I need a single for an ultralight sailplane. This wheel saves me 1.5-2 lbs. I am designing a caliper brake to work with the wheel since no brake is available. talking with Azusa, they welcomed the design and would consider it.
Here is an ideal super light wheels for ultralight aircraft 103 exemption: light, respectively strong for the weight limit of 103 (to be safe though dont exceed about 370lbs max force per wheel on rough landing), easy to assemble. Using inner tube is a must. Here I found the ideal set for these wheels - everything mounts well together: 6 wheel #06-02700, Ribbed round tire 13-400 x 6 / #7005, Azusa Tube # 7133 410/350 X 6 , valve 90deg, part #06-00075, I would recommend aircraftspruce to sell all these as a set for aircraft application instead of the go-cart sawtooth set they currently sell. Also would be great if they publish the max designed load limit of this set with ribbed tires. Thanks to aircraftspruce for their great support of our projects. Vladimir Blanshey eBirdman, TN
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
It depends on what tires you are using. The wheels themselves have a load rating of up to 507 lbs. But if the tires are rated for less than the wheels, the wheels may fail at a lower rating.
The Azusalite 6 inch wheels (part # 06-02700) weigh approximately 1.82 lbs.
Yes, these will fit each other.
Thank you for your suggestion. We have added it to the overview.
3 inch wide
3 inch wide, 5/8 id on the axle and .55 lbs.
