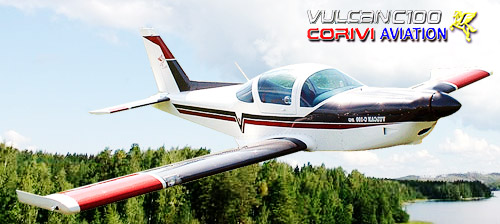

Vulcan C100
Vulcan C100 is a real Sport Pilot aircraft available both fixed and retractile landing gear. Designed for italian ultralight aviators it is a very beautiful aircraft inspired to Frati’s Falco line. All metal construction it can support engines from 80 hp to 150 hp. Suggested engine Rotax 912 series.
Dimensions and Characteristics:
  • Number of Seats: 2
  • Horsepower: 80-150 HP
  • Length: 21.45 Ft. (6,50m)
  • Height: 7.59 Ft (2,30m)
  • Cross Wheel Distance: 8.25 feet (2.50 m)
  • Electric Actuated Flaps
  • Retractile Landing Gear – Pneumatic Actuated
  • Stabilizer Trim – Electric Actuated
  • Engine: ROTAX 912 ULS
  • Propeller: Carbon Composite Three Blade – On Round Pitch Variable
  • Empty Weight: 621 Lbs. (282 Kg)
  • Fuel Capacity: 24.96 US Gallon (96 litres)

    • Materials:
  • Main Parts in 2024 Avional T3 Alloy
  • Landing Gear and Engine Mount in 4130 Steel
  • Bolt in 8.8 Steel
  • Engine Cover and Cockpit Fairing in Fiberglas
    • Performances:
  • Max Horizontal Speed: 140 Kts (260 Km/h)
  • Cruise Speed (75% setting): 124 Kts (230 Km/h)
  • Top Speed: 161 MPH
  • Stall Speed (Flaps down): 34 Kts (62 Km/h)
  • Climb Rate: 1200 Ft/min (6 m/sec)
  • Take Off Run: 726 Ft (220 m)(1617 Ft with 50 Ft Obstacle)
  • Landing Run: 462 Ft (140 m)
  • Max Range: 653 nm (1210 Km)5h30’ with 30’ Reserve)
  • Max Efficiency: 12
    		•


    CORIVI AVIATION
    Via Puglia, 70/D - 95125 Catania - CT (Italy)
    Email: corivi@corivi.com • Website: www.corivi.com
    Phone/Fax: (0039) 095 330915
