The Model 6200 is used to perform leak-checks and accuracy checks on the Pitot Static systems of non-RVSM aircraft. Accuracy checks are typically performed on altimeters, airspeed indicators and VSI's. The high accuracy of the Pitot output is ideally suited for checks at low airspeeds. The Model 6200 is equipped with a Remote unit which has a large sunlight-readable display and touch-screen. A redundant keypad is also included. An internal 8-hour battery (optional) makes the tester completely portable. The wide operating temperature (optional) makes it usable in any environment. The "Profiles" feature makes it very easy to use. Calibration is required only once a year. The 6200 is also WiFi-enabled. With these distinctive features, the Model 6200 is the ideal Pitot Static tester for helicopters and non-RVSM aircraft.
FEATURES
WiFi-enabled
Automated operation (at an Affordable price) Simply enter the target set-points for altitude and airspeed and the unit automatically achieves the targets, ramping at the programmed rates. Control at the set-point is stable within ± 1 foot and ± 0.1 knot. The tester’s low price makes it very affordable
Calibration period: 1 year
Programmable limits User-programmable limits for altitude, airspeed, Mach, VSI and airspeed-rate provide protection to the aircraft.
Negative-airspeed protection An internal differential-pressure relief valve provides protection against negative airspeed.
Internal Battery (Optional) The internal battery allows for 8 hours of continuous operation. Re-charge time is only 8 hours.
Low-temperature operation (optional) With optional internal heaters, the unit can be operated down to -40°C
“Jog” and “Hold” features Set-points can be “jogged” up or down in small increments. Ramping to a set-point can be put on “hold” and controlled at the current measured value.
“Ground” feature Brings Pitot and Static outputs to ambient “ground” pressure after completing a test. Ambient pressure is constantly monitored.
“Profiles” feature A profile of set-points can be downloaded from a PC, allowing the user to step through the set-points using a single key. Each profile can have up to 50 set-points and 15 profiles can be stored in the unit.
Leak checks Pitot and Static leak-checks can be performed either independently or simultaneously. Three leak-timers can be programmed to perform timed leaks between 1 to 20 minutes. The display of “instant” leak rates provides immediate feedback to the user.
Pressure & Vacuum source Built-in diaphragm pumps provide the pressure and vacuum source for the unit.

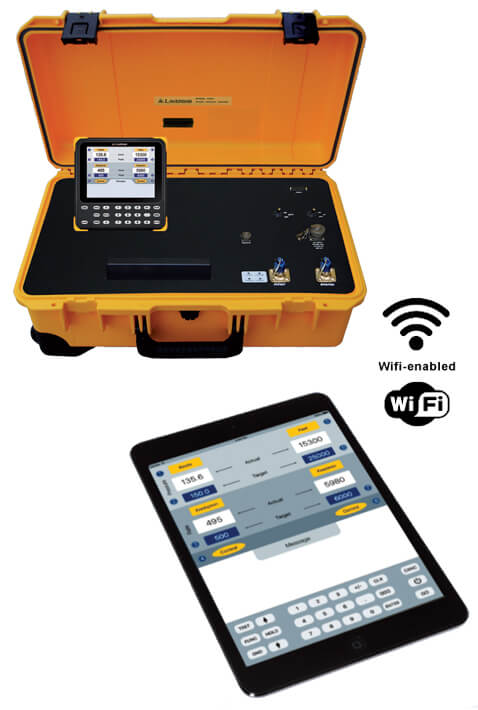

Remote unit The Remote unit is the operator interface for the tester. It features a sunlight-readable 5.8” color display, a back-lit keypad and a touch-screen (which can be disabled). All operations are performed from a single screen which displays all pertinent parameters.
Manual Vent Valves On loss of power, the unit maintains pressure (except for leaks). The unit can be manually vented to “Ground” at a controlled rate using precision metering valves.
SPECIFICATIONS
Static Output Pressure function
|
Range:
Resolution:
Accuracy:
Units: |
1 to 32 inHg
0.001 inHg
±0.005 inHg
inHG, mbar, psi, mmHG, kpa |
Pressure Rate
|
Range:
Resolution:
Accuracy:
Units: |
0 to 30 inHg/min
0.001 inHg/min
±1% of rate
pressure-units/min |
Altitude function
|
Range:
Resolution:
Accuracy: |
-2000 ft. to 50,000 ft.
1 foot
± 5 ft. @ 0 ft.
± 6.5 ft. @ 10,000 ft.
± 10 ft. @ 20,000 ft.
± 15 ft. @ 35,000 ft.
± 30 ft. @ 50,000 ft. |
|
Units: |
Feet, Meters |
Altitude Rate function
|
Range:
Resolution:
Accuracy:
Units: |
0 ft/min to ±10,000 ft/min
1 ft/min
±1% of rate of climb
Feet/min, Meters/sec |
Pitot Output Pressure function
|
Range:
Resolution:
Accuracy:
Pt units:
Qc units: |
0 to 15 inHg (differential)
0.001 inHg
±0.003 inHg
inHg, mbar, psi, mmHg, kpa, EPR
inHg, mbar, psi, mmHg, kpa |
Pressure Rate
|
Range:
Resolution:
Accuracy:
Units: |
0 to 30 inHg/min
0.001 inHg/min
±1% of rate
pressure-units/min
(EPR in inHg/min) |
Airspeed function
|
Range:
Resolution:
Accuracy: |
0 to 500 knots
0.1 knots
± 1.0 knots @ 20 knots
± 0.3 knots @ 50 knots
± 0.2 knots @ 100 knots
± 0.1 knots @ 200 knots
± 0.04 knots @ 500 knots |
|
Units: |
knots, Mach, km/hr, mph |
Airspeed Rate
|
Range:
Resolution:
Accuracy:
Units: |
0 to 500 knots/min
0.1 knots/min (0.01 km/hr/sec)
±2% of rate
knots/min, km/hr/sec, mph/min |
Mach function
|
Range:
Resolution:
Accuracy: |
0.0 to 1.0 Mach
0.001 Mach
±0.001 above 0.2 Mach |
Power requirement
|
90-260 VAC, 47-440 Hz, 100 W (200 W with heaters)
Optional Internal Battery: 8 hours of operation |
External Interfaces
|
WiFi, RS232 Serial ; Encoder optional |
Dimensions & weights
|
Main unit:
Remote unit: |
22” x 14” x 9” / 30 lbs
6” x 6” x 1” / 1.8 lb. |
Environmental specs
|
Operating temp.
Storage temp.
Humidity: |
0°C to 50°C, –40°C to 50°C (optional)
–40°C to 75°C
5 to 100% |
|
