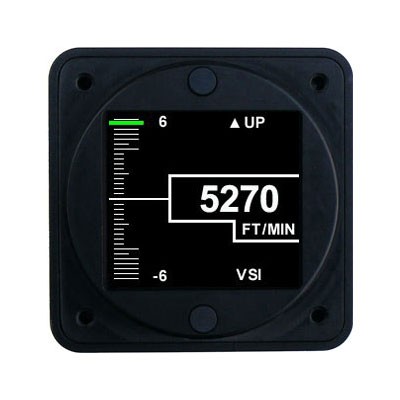

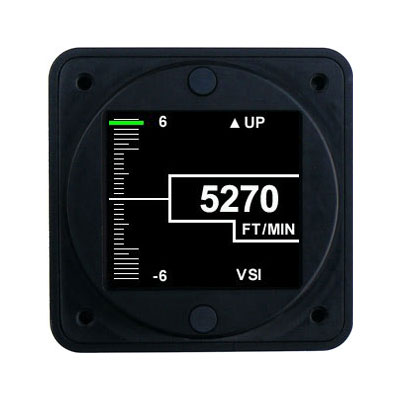

Aerospace Logic 2-1/4 Electronic Vertical Speed Indicator 0-6000 Fpm With Altitude Encoder

$1410.00/Each
Quantity
Add to Wishlist
Part# 10-06272
MFR Model# VSI200E

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

The VSI200 is the most accurate Vertical Speed Indicator available for your aircraft. It exceeds all the requirements of TSO C8e and AS8016A while providing the following functionality:
  • Installer selectable for 0-2,000fpm, 0-3,000fpm, 0-4,000fpm or 0-6,000fpm rates of change.
  • Graphic bar indication of rate of change
  • Precision digital rate of change indication
  • Instantaneous display of current Standard pressure Altitude
  • -1,000' to 35,000' Standard Pressure Altitude Encoder - for part number 10-06272 only!

Specifications

Certification / Compliance
TSO C8e & C88b
Canadian STC (PENDING)
FAA STC (PENDING)
Certified as primary replacement or for secondary use

Environmental
DO-160E
C1CAASXXXXXXYBXXBBBCSBA1C11XXAX

Software
DO-178B Level C

DC Power Source
Input voltage 6 to 36 VDC
Power consumption 125mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV

Operating Temperature
Constant operating -20C to +55C
Short term operating (1hr) -40C to +70C
Storage -55C to +85C

Display Units VSI
Feet per Minute

Display Units Standard Pressure Altitude
Feet

Accuracy Demonstrated
+/- 1'

Accuracy Certified (Exceeds)
SAE AS8016A, AS8003

LCD Display
Sunlight readable LCD
176 X 192 display pixels, 65,535 colors

RS-232 Data Output
1 second per full sequence at 57.6K bps (8/N/2/N)

Interface Connector Electrical
DB-25

Interface Connector Static Port
1/8" NPT

Software Functionality
Rate of climb or descent
Rate of climb or descent and Standard Pressure Altitude
Standard Gillham Grey Code output to transponder

Performance Specification Statement per AS8003 Section 4.4

a) Entire instrument power requirement is 125mA. The encoder section is capable of sinking (grounding) and maximum of 1.15A of current (115mA X 10 outputs).

b) The encoder shall interface to transponder units for which the following Gillham Grey Code Outputs are acceptable (most Mode C transponder units):

  • Each encoder lead is a sink driver that will ground up to a 60V input. Minimum voltage is 3V.
  • Each encoder lead will sink a constant current of 115mA. Minimum current requirement is 525uA.
  • Maximum ON impedance is less than 3 Ohms.
  • Maximum ON (logical “1”) voltage is 60V. Minimum is 3V.
  • Leakage current for (4) above is less than 100nA
  • Maximum OFF (logical “0”) voltage is 0.6V. Minimum is 0.12V.
  • Maximum rate of altitude change is 100mS.
  • Switching bandwidth is greater than 1,000 kHz.
  • Provides standard 10-Bit Code.

Dimensions Hole
Standard 2 1/4" aircraft mounting hole

Dimensions Enclosure
2.45 X 2.45 X 0.9

Dimensions Including Pressure Port
2.45 X 2.45 X 1.725

Weight (excluding harness)
4.30 oz

Finish
Black anodized 6061 aluminum
