Aerospace Logic Dual Fuel Tank Level For 0V-5V DC Sender

$1114.00/Each
Quantity
Add to Wishlist
Part# 10-04443
MFR Model# FL252

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

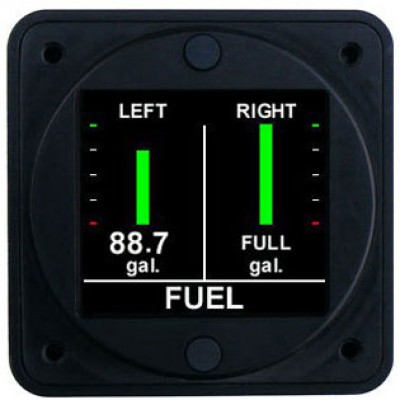

The FL25X instruments are advanced, next generation airborne fuel level reporting instruments that support from two to six fuel tanks using senders that provide a DC output between 0V and 5V.

Fuel level functionality is TSO'd and meets the repeatable accuracy requirements of SAE AS405C, +/- 1US Gallon.

Functional displays include:
  • Graphical indication of fuel level in each tank
  • Selectable digital fuel quantity for each tank
  • Fully programmable color indication to meet all aircraft marking requirements
  • Graphical fuel level indication, starting at power on
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this Aerospace Logic Dual Fuel Tank Level piggyback off the original tank sensors or does it need to still new fuel senders?

This unit requires a 0v-5v dc sender to be installed. You can use original tank senders if they meet this voltage.

Q: Can the gauge indicated qty units be changed to liters or lbs?

The gauge can be set to indicate in liters. However, the fuel calibration is performed in US Gallons.
