Whelen 7117001 LED Wingtip Anti-Collision Green Navigation

$3086.00/Each
Part# 11-16894
MFR Model# 01-0771170-01

Overview

Whelen Anti-Collision/ Forward Position Light Assembly, in green LED navigation.

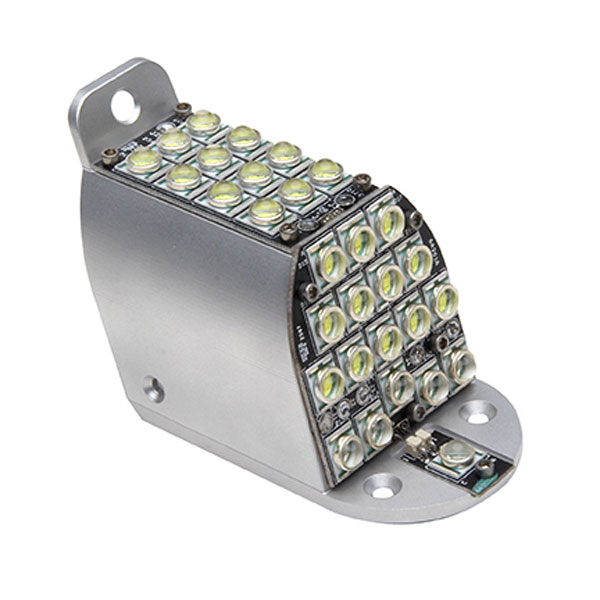

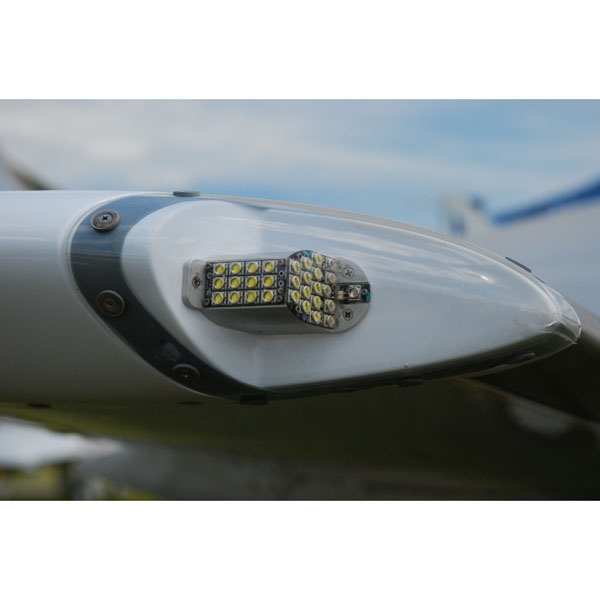

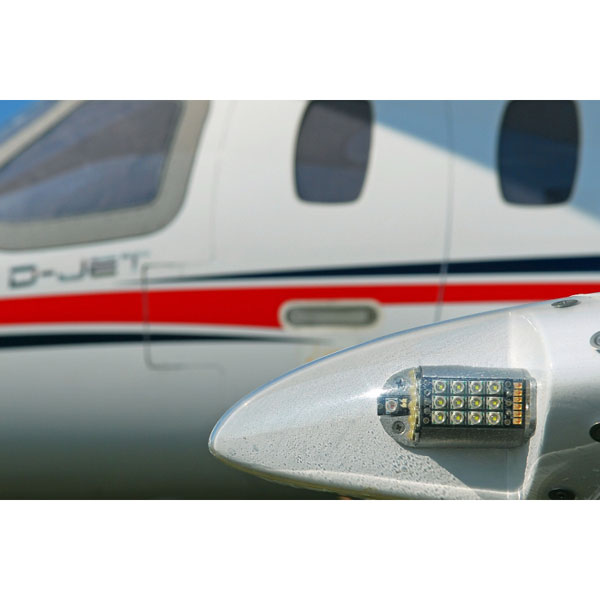

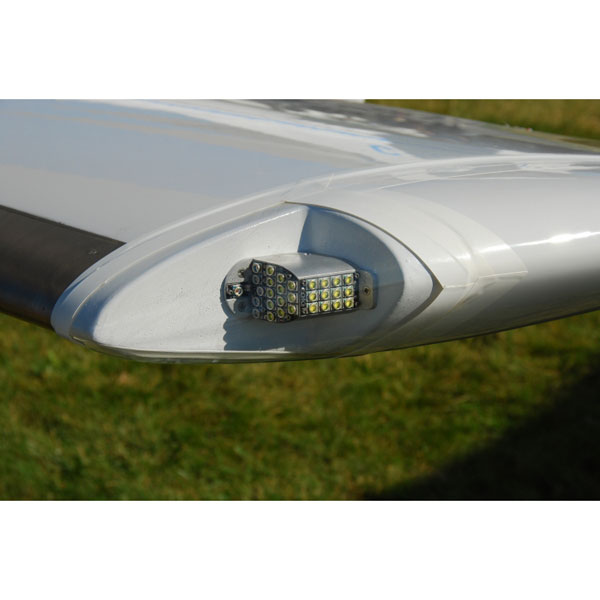

Whelen 71170 Series Model 7117001 is an all LED wingtip anti-collision/forward position light assembly. The design is intended to be mounted behind an existing lens and is operated by an external flasher/ current source box (ref - 71234).

Unit complies with TSO-C96a Class II (400 ecp) anti-collision light requirements, and TSO-C30c forward position light requirements.

Specifications

  • Power Consumption: 0.53 Amps avg. 2.8Amps Peak @ 0.25 sec. 28 VDC
  • Weight: 0.45 Lbs
  • Height (includes mounting flange): 2.33"
  • Overall Length: 3.97" /li> Width: 1.77" (44mm) Input connector: MIL D38999/20F13-8PN
